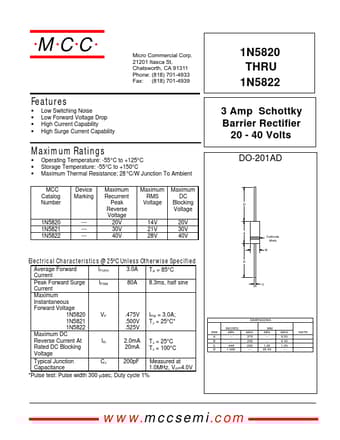

1N5820 - 3 Amp Schottky Barrier Rectifier

Micro Commercial Components

Datasheet Details

Part number	1N5820
Manufacturer	Micro Commercial Components
File Size	46.20 KB
Description	3 Amp Schottky Barrier Rectifier
Datasheet	1N5820_MicroCommercialComponents.pdf

Low Switching Noise Low Forward Voltage Drop High Current Capability High Surge Current Capability !"# $ % !"# 1N5820 THRU 1N5822 3 Amp Schottky Barrier Rectifier 20 - 40 Volts DO-201AD.
Maximum Ratings Operating Temperature: -55 °C to +125°C Storage Temperature: -55°C to +150°C Maximum Thermal Resistance; 28 °C/W J.
