MIC29151, MIC29150 - (MIC29xxx) High-Current Low-Dropout Regulators

Micrel

📥 Download Datasheet

MIC29151 Datasheet Preview — This datasheet PDF includes multiple part numbers: MIC29151, MIC29150. Please refer to the document for exact specifications by model.

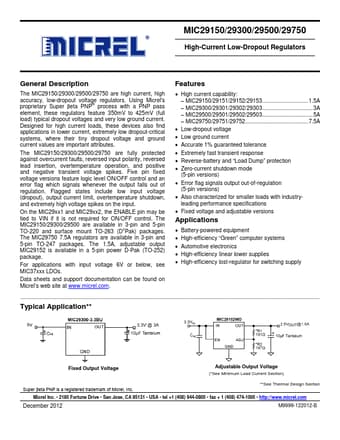

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MIC29151, MIC29150
Manufacturer	Micrel
File Size	807.58 KB
Description	(MIC29xxx) High-Current Low-Dropout Regulators
Datasheet	MIC29150_Micrel.pdf
Note	This datasheet PDF includes multiple part numbers: MIC29151, MIC29150. Please refer to the document for exact specifications by model.

MIC29151 Product details

Description

The MIC29150/29300/29500/29750 are high current, high accuracy, low-dropout voltage regulators.

Features

High current capability MIC29150/29151/29152/291531.5A MIC29300/29301/29302/29303 3A MIC29500/29501/29502/29503 5A MIC29750/29751/297527.5A.
Low-dropout voltage.
Low ground current.
Accurate 1% guaranteed tolerance.
Extremely fast transient response.
Reverse-battery and “Load Dump” protection.
Zero-current shutdown mode (5-pin versions).
Error flag signals output out-of-regulation (5-pin versions).
Also characteriz.
