DSC8004 - Programmable Low-Power Precision CMOS Oscillator

Product Overview

Micrel

Datasheet Details

Part number	DSC8004
Manufacturer	Micrel
File Size	540.69 KB
Description	Programmable Low-Power Precision CMOS Oscillator
Datasheet	DSC8004 Datasheet

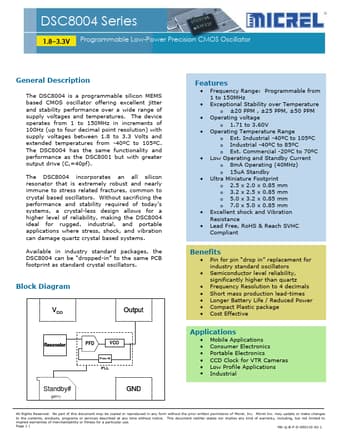

Additional preview pages of the DSC8004 datasheet.

Product details

Description

The DSC8004 is a programmable silicon MEMS based CMOS oscillator offering excellent jitter and stability performance over a wide range of supply voltages and temperatures.

Features

Frequency Range: Programmable from 1 to 150MHz.
Exceptional Stability over Temperature o ±20 PPM , ±25 PPM, ±50 PPM.
Operating voltage o 1.71 to 3.60V.
Operating Temperature Range o Ext. Industrial -40ºC to 105ºC o Industrial -40ºC to 85ºC o Ext. Commercial -20ºC to 70ºC.
Low Operating and Standby Current o 8mA Operating (40MHz) o 15uA Standby.
Ultra Miniature Footprint o 2.5 x 2.0 x 0.85 mm o 3.2 x 2.5 x 0.85 mm o 5.0 x 3.2 x 0.85 mm o 7.0 x 5.0 x 0.85 mm.
Ex.
