SY89874U - Programmable Clock Divider/Fanout Buffer

General Description

This low-skew, low-jitter device is capable of accepting a high-speed (e.g., 622MHz or higher) CML, LVPECL, LVDS or HSTL clock input signal and dividing down the frequency using a programmable divider ratio to create a frequency-locked, lower speed version of the input clock.

Key Features

  • Integrated programmable clock divider and 1:2 fanout buffer.
  • Guaranteed AC performance over temperature and voltage:.
  • >2.5GHz fMAX.

📥 Download Datasheet

Datasheet Details

Part number SY89874U
Manufacturer Micrel Semiconductor
File Size 692.23 KB
Description Programmable Clock Divider/Fanout Buffer
Datasheet download datasheet SY89874U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY89874U Programmable Clock Divider/Fanout Buffer Microchip
SY89206V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89216V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89230U Clock Divider Micrel
SY89231U Clock Divider Micrel

Other Datasheets by Micrel Semiconductor

Part Number Description
SY89874AU 2.5GHz Any-In to LVPECL Programmable Clock Divider/Fanout Buffer
SY89871U 2.5GHz Any Diff. In-To-LVPECL Programmable Clock Divider/Fanout Buffer
SY89872U IN-TO-LVDS PROGRAMMABLE CLOCK DIVIDER/FANOUT BUFFER
SY89873L IN-TO-LVDS PROGRAMMABLE CLOCK DIVIDER FANOUT BUFFER W/ INTERNAL TERMINATION
SY89875U IN-TO-LVDS PROGRAMMABLE CLOCK DIVIDER AND 1:2 FANOUT BUFFER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

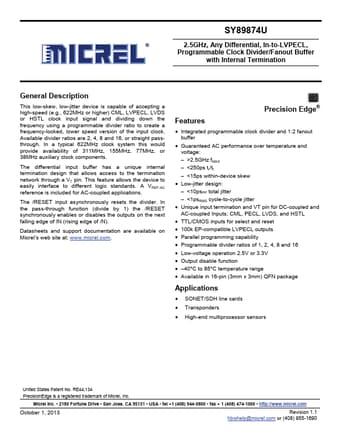

SY89874U 2.5GHz, Any Differential, In-to-LVPECL, Programmable Clock Divider/Fanout Buffer with Internal Termination General Description This low-skew, low-jitter device is capable of accepting a high-speed (e.g., 622MHz or higher) CML, LVPECL, LVDS or HSTL clock input signal and dividing down the frequency using a programmable divider ratio to create a frequency-locked, lower speed version of the input clock. Available divider ratios are 2, 4, 8 and 16, or straight passthrough. In a typical 622MHz clock system this would provide availability of 311MHz, 155MHz, 77MHz, or 38MHz auxiliary clock components. The differential input buffer has a unique internal termination design that allows access to the termination network through a VT pin.
