SY89830U - 1:4 PECL/ECL CLOCK DRIVER

Description

The SY89830U is a high-speed, 2.5GHz differential PECL 1:4 fanout buffer optimized for ultra-low skew applications.

Within device skew is guaranteed to be less than 25ps over temperature and supply voltage.

Features

  • s Guaranteed AC parameters over temp/voltage:.
  • > 2.5GHz fMAX.
  • < 25ps within-device skew.
  • < 225ps tr/tf time.
  • < 450ps prop delay s Low jitter design:.
  • < 1psRMS cycle-to-cycle jitter.
  • < 15psPP total jitter s 2:1 Differential MUX input s Flexible supply voltage: 2.5V/3.3V/5V s Wide operating temperature range:.
  • 40°C to +85°C s 100K ECL compatible outputs s Inputs accept PECL/LVPECL/ECL/HSTL logic levels s Available in a 16-pin TSSOP pack.

📥 Download Datasheet

Datasheet Details

Part number SY89830U
Manufacturer Micrel Semiconductor
File Size 123.85 KB
Description 1:4 PECL/ECL CLOCK DRIVER
Datasheet download datasheet SY89830U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY89874U Programmable Clock Divider/Fanout Buffer Microchip
SY89206V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89216V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89230U Clock Divider Micrel
SY89231U Clock Divider Micrel

Other Datasheets by Micrel Semiconductor

Part Number Description
SY89831U Ultra-Precision 1:4 LVPECL Fanout Buffer/Translator
SY89832U ULTRA-PRECISION 1:4 LVDS FANOUT BUFFER/TRANSLATOR
SY89833AL 3.3V Low Noise Ultra-Precision 1:4 LVDS Fanout Buffer/Translator
SY89833L 3.3V Ultra-Precision 1:4 LVDS Fanout Buffer/Translator
SY89834U 1GHz LVTTL/CMOS-TO-LVPECL 1:4 FANOUT BUFFER/TRANSLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

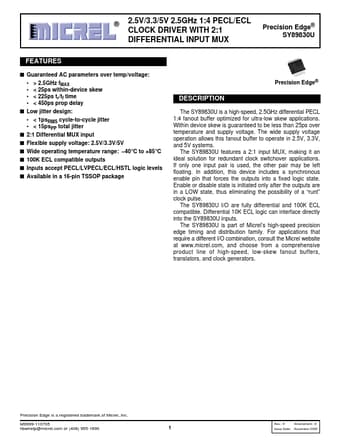

Micrel, Inc. 2.5V/3.3/5V 2.5GHz 1:4 PECL/ECL CLOCK DRIVER WITH 2:1 DIFFERENTIAL INPUT MUX Precision Edge® Precision ESdY8g9e83®0U SY89830U FEATURES s Guaranteed AC parameters over temp/voltage: • > 2.5GHz fMAX • < 25ps within-device skew • < 225ps tr/tf time • < 450ps prop delay s Low jitter design: • < 1psRMS cycle-to-cycle jitter • < 15psPP total jitter s 2:1 Differential MUX input s Flexible supply voltage: 2.5V/3.3V/5V s Wide operating temperature range: –40°C to +85°C s 100K ECL compatible outputs s Inputs accept PECL/LVPECL/ECL/HSTL logic levels s Available in a 16-pin TSSOP package Precision Edge® DESCRIPTION The SY89830U is a high-speed, 2.5GHz differential PECL 1:4 fanout buffer optimized for ultra-low skew applications.
