SY89546U - 3.2Gbps DIFFERENTIAL 4:1 LVDS MULTIPLEXER

Description

The SY89546U is a precision, High-speed 4:1 differential multiplexer that provides two copies of the selected input.

The high speed LVDS (350mV) compatible outputs with a guaranteed throughput of up to 3.2Gbps over temperature and voltage.

Features

  • Selects among four differential inputs.
  • Provides two copies of the selected input.
  • Guaranteed AC parameters over temp/voltage:.
  • DC-to>3.2Gbps data rat throughput.

📥 Download Datasheet

Datasheet Details

Part number SY89546U
Manufacturer Micrel Semiconductor
File Size 727.32 KB
Description 3.2Gbps DIFFERENTIAL 4:1 LVDS MULTIPLEXER
Datasheet download datasheet SY89546U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY89206V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89216V DIFFERENTIAL PECL/ECL RECEIVER/BUFFER MICREL
SY89230U Clock Divider Micrel
SY89231U Clock Divider Micrel
SY89297U Precision CML Dual-Channel Programmable Delay Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
SY89540U Precision Low Jitter 4x4 LVDS Crosspoint Switch
SY89542U DIFFERENTIAL 2:1 LVDS MULTIPLEXER
SY89543L DIFFERENTIAL 2:1 LVDS MULTIPLEXER
SY89544U DIFFERENTIAL 4:1 LVDS MULTIPLEXER
SY89545L DIFFERENTIAL 4:1 LVDS MULTIPLEXER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

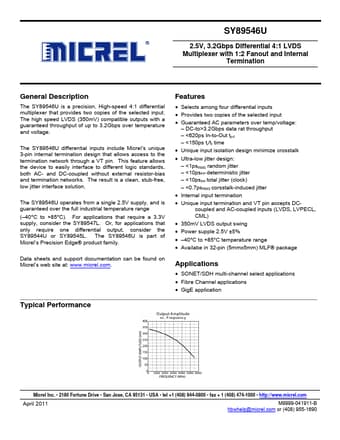

SY89546U 2.5V, 3.2Gbps Differential 4:1 LVDS Multiplexer with 1:2 Fanout and Internal Termination General Description The SY89546U is a precision, High-speed 4:1 differential multiplexer that provides two copies of the selected input. The high speed LVDS (350mV) compatible outputs with a guaranteed throughput of up to 3.2Gbps over temperature and voltage. The SY89546U differential inputs include Micrel’s unique 3-pin internal termination design that allows access to the termination network through a VT pin. This feature allows the device to easily interface to different logic standards, both AC- and DC-coupled without external resistor-bias and termination networks. The result is a clean, stub-free, low jitter interface solution. The SY89546U operates from a single 2.
