SY88933V - PECL LOW-POWER LIMITING POST AMPLIFIER

Description

The SY88933V low-power limiting post amplifier is designed for use in fiber-optic receivers.

The device connects to typical transimpedance amplifiers (TIAs).

The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time.

Features

  • Single 3.3V or 5V power supply.
  • DC to 1.25Gbps operation.
  • Low noise PECL data outputs.
  • Chatter-free OC-TTL signal setect (SD) output with internal 6.75kΩ pull-up resistor.
  • TTL EN input.
  • Programmable SD level set (SDLVL).
  • Available in a tiny 10-pin MSOP (3mm) package.

📥 Download Datasheet

Datasheet Details

Part number SY88933V
Manufacturer Micrel Semiconductor
File Size 69.84 KB
Description PECL LOW-POWER LIMITING POST AMPLIFIER
Datasheet download datasheet SY88933V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY8893 3A Synchronous Step Down Regulator Silergy
SY8893E 3A Synchronous Step Down Regulator Silergy
SY8893L Synchronous Step Down Regulator Silergy
SY8891 5.5V/1A Synchronous Step Down Regulator Silergy
SY8891E 5.5V/1A Synchronous Step Down Regulator Silergy

Other Datasheets by Micrel Semiconductor

Part Number Description
SY88933AL PECL High-Sensitivity Limiting Post Amplifier
SY88932L SONET/SDH LASER DRIVER
SY88902 LASER DIODE DRIVER
SY88903 1.25Gbps HIGH-SPEED LIMITING POST AMPLIFIER
SY88903AL PECL High-Sensitivity Limiting Post Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

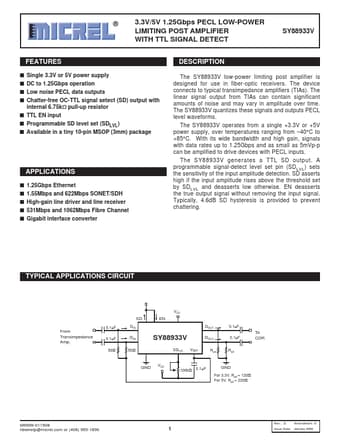

Micrel, Inc. 3.3V/5V 1.25Gbps PECL LOW-POWER LIMITING POST AMPLIFIER WITH TTL SIGNAL DETECT SY88933V SY88933V FEATURES ■ Single 3.3V or 5V power supply ■ DC to 1.25Gbps operation ■ Low noise PECL data outputs ■ Chatter-free OC-TTL signal setect (SD) output with internal 6.75kΩ pull-up resistor ■ TTL EN input ■ Programmable SD level set (SDLVL) ■ Available in a tiny 10-pin MSOP (3mm) package APPLICATIONS ■ 1.25Gbps Ethernet ■ 1.55Mbps and 622Mbps SONET/SDH ■ High-gain line driver and line receiver ■ 531Mbps and 1062Mbps Fibre Channel ■ Gigabit interface converter DESCRIPTION The SY88933V low-power limiting post amplifier is designed for use in fiber-optic receivers. The device connects to typical transimpedance amplifiers (TIAs).
