SY58013U - 1:2 FANOUT BUFFER/TRANSLATOR

Description

The SY58013U is a 2.5V/3.3V precision, high-speed, fully differential 1:2 LVPECL fanout buffer.

Features

  • Precision 1:2, 400mV LVPECL fanout buffer.
  • Low jitter performance:.
  • 55fsRMS phase jitter (typ).
  • Accepts an input signal as low as 100mV.
  • Guaranteed AC performance over temperature and voltage:.
  • > 6GHz fMAX clock.

📥 Download Datasheet

Datasheet Details

Part number SY58013U
Manufacturer Micrel Semiconductor
File Size 567.16 KB
Description 1:2 FANOUT BUFFER/TRANSLATOR
Datasheet download datasheet SY58013U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY5800 Single Stage Flyback And PFC Controller Silergy
SY5800A Single Stage Flyback And PFC Controller Silergy
SY5802 Single Stage Flyback And PFC Controller Silergy
SY58020U 1:4 CML Fanout Buffer/Translator Microchip
SY5810 Single Stage Flyback And PFC Controller Silergy

Other Datasheets by Micrel Semiconductor

Part Number Description
SY58011U 1:2 CML FANOUT BUFFER/TRANSLATOR
SY58012U 1:2 LVPECL FANOUT BUFFER/TRANSLATOR
SY58016L DIFFERENTIAL CML LINE DRIVER/RECEIVER
SY58017U ULTRA-PRECISION DIFFERENTIAL CML 2:1 MUX
SY58018U ULTRA-PRECISION DIFFERENTIAL LVPECL 2:1 MUX

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

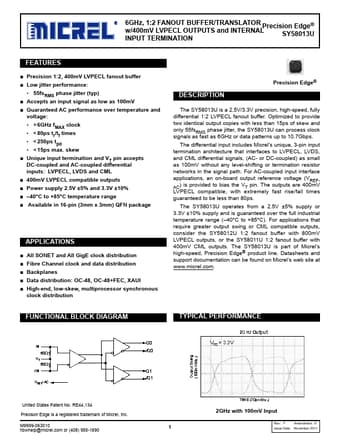

Micrel, Inc. I6wNG/P4H0Uz0T,m1TV:E2RLFVMAPINNEOCAUTLTIOOBNUUTFPFUETRS/tarndanINsTlEaRtNoArLPrecisPSioreYnc5isE8Sio0dYn15gE83e0dU®1g3eU® FEATURES ■ Precision 1:2, 400mV LVPECL fanout buffer ■ Low jitter performance: • 55fsRMS phase jitter (typ) ■ Accepts an input signal as low as 100mV ■ Guaranteed AC performance over temperature and voltage: • > 6GHz fMAX clock • < 80ps tr/tf times • < 250ps tpd • < 15ps max. skew ■ Unique input termination and VT pin accepts DC-coupled and AC-coupled differential inputs: LVPECL, LVDS and CML ■ 400mV LVPECL compatible outputs ■ Power supply 2.5V ±5% and 3.
