SY10E157, SY100E157 - QUAD 2:1 MULTIPLEXER

Micrel Semiconductor

📥 Download Datasheet

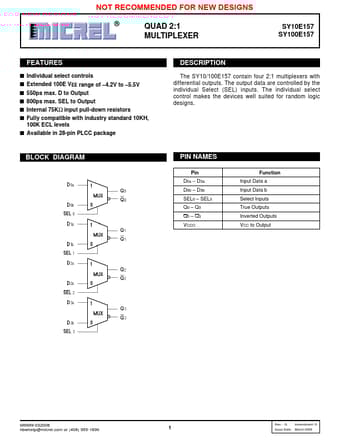

SY10E157 Datasheet Preview — This datasheet PDF includes multiple part numbers: SY10E157, SY100E157. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SY10E157, SY100E157
Manufacturer	Micrel Semiconductor
File Size	89.07 KB
Description	QUAD 2:1 MULTIPLEXER
Datasheet	SY100E157_MicrelSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SY10E157, SY100E157. Please refer to the document for exact specifications by model.

SY10E157 Product details

Description

The SY10/100E157 contain four 2:1 multiplexers with differential outputs. D3a D0b D3b SEL0 SEL3 Q0 Q3 Q0 Q3 VCCO Function Input Data a Input Data b Select Inputs True Outputs Inverted Outputs VCC to Output M9999-032006 hbwhelp@micrel.com or (408) 955-1690 1 Rev.: G Amend

Features

s Individual select controls s Extended 100E VEE range of.
4.2V to.
5.5V s 550ps max. D to Output s 800ps max. SEL to Output s Internal 75KΩ input pull-down resistors s Fully compatible with industry standard 10KH, 100K ECL levels s Available in 28-pin PLCC package BLOCK.
