MIC94042 - (MIC94040 - MIC94043) RDSON 3A High Side Load Switch

Download the MIC94042 datasheet PDF. This datasheet also covers the MIC94040 variant, as both devices belong to the same (mic94040 - mic94043) rdson 3a high side load switch family and are provided as variant models within a single manufacturer datasheet.

Description

The MIC94040/1/2/3 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage.

The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current.

Features

  • in a tiny 1.2mm x ® 1.2mm 4 pin MLF package. The MIC94040 and MIC94041 feature rapid turn on, while the MIC94042 and MIC94043 provide a slew rate controlled softstart turn-on of 100µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage. The MIC94041 and MIC94043 feature an active load discharge circuit which switches in a 200Ω load when the switch is disabled to automatically discharge a capacitive load. An active pull-down on the en.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MIC94040_MicrelSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MIC94042
Manufacturer Micrel Semiconductor
File Size 1.47 MB
Description (MIC94040 - MIC94043) RDSON 3A High Side Load Switch
Datasheet download datasheet MIC94042 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC94042 3A High-Side Load Switch Microchip
MIC94040 3A High-Side Load Switch Microchip
MIC94041 3A High-Side Load Switch Microchip
MIC94043 3A High-Side Load Switch Microchip
MIC94052 P-Channel MOSFET Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC94040 (MIC94040 - MIC94043) RDSON 3A High Side Load Switch
MIC94041 (MIC94040 - MIC94043) RDSON 3A High Side Load Switch
MIC94043 (MIC94040 - MIC94043) RDSON 3A High Side Load Switch
MIC94044 3A High Side Load Switch
MIC94045 3A High Side Load Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

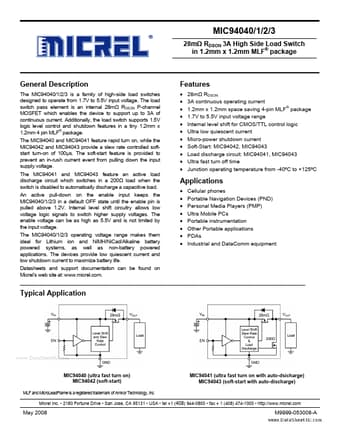

MIC94040/1/2/3 28mΩ RDSON 3A High Side Load Switch in 1.2mm x 1.2mm MLF® package General Description The MIC94040/1/2/3 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. Additionally, the load switch supports 1.5V logic level control and shutdown features in a tiny 1.2mm x ® 1.2mm 4 pin MLF package. The MIC94040 and MIC94041 feature rapid turn on, while the MIC94042 and MIC94043 provide a slew rate controlled softstart turn-on of 100µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.
