MIC9130 - High-Speed Telecom DC-to-DC Controller

Product Overview

Micrel Semiconductor

Part number	MIC9130
Manufacturer	Micrel Semiconductor
File Size	237.54 KB
Description	High-Speed Telecom DC-to-DC Controller
Datasheet	MIC9130 Datasheet

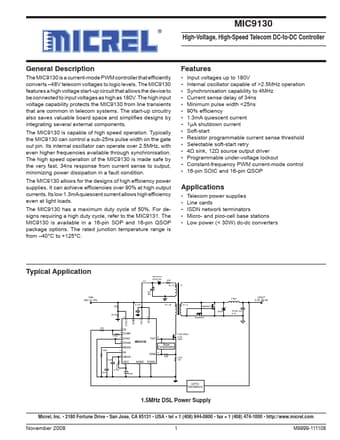

Additional preview pages of the MIC9130 datasheet.

The MIC9130 is a current-mode PWM controller that efﬁciently converts 48V telecom voltages to logic levels.

a high voltage start-up circuit that allows the device to be connected to input voltages as high as 180V. The high input voltage capability protects the MIC9130 from line transients that are common in telecom systems. The start-up circuitry also saves valuable board space and simpliﬁes designs by integrating several external components. The MIC9130 is capable of high speed operation. Typically the MIC9130 can control a sub-25ns pulse width on the gate out pin. Its internal oscillator can operate.
