MIC5206 - 150mA Low-Noise LDO Regulator

Name: MIC5206
SKU: MIC5206-187367

Micrel Semiconductor

📥 Download Datasheet

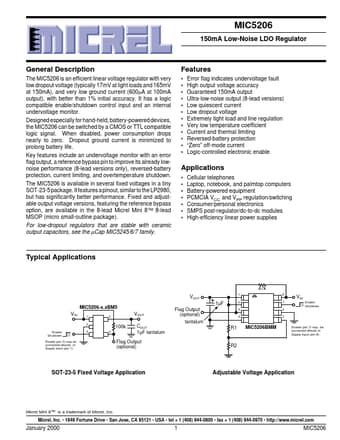

MIC5206 Datasheet Preview — Preview of MIC5206 PDF

Datasheet Details

Part number	MIC5206
Manufacturer	Micrel Semiconductor
File Size	73.04 KB
Description	150mA Low-Noise LDO Regulator
Datasheet	MIC5206-MicrelSemiconductor.pdf

MIC5206 Product details

Description

The MIC5206 is an efficient linear voltage regulator with very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (600µA at 100mA output), with better than 1% initial accuracy.

Features

include an undervoltage monitor with an error flag output, a reference bypass pin to improve its already lownoise performance (8-lead versions only), reversed-battery protection, current limiting, and overtemperature shutdown. The MIC5206 is available in several fixed voltages in a tiny SOT-23-5 package. It features a pinout, similar to the LP2980, but has significantly better performance. Fixed and adjustable output voltage versions, featuring the reference bypass option, are available in the 8.
