MIC5158 - Super LDO Regulator Controller

Download the MIC5158 datasheet PDF. This datasheet also covers the MIC5156 variant, as both devices belong to the same super ldo regulator controller family and are provided as variant models within a single manufacturer datasheet.

Description

The MIC5156, MIC5157, and MIC5158 Super Low-Dropout (LDO) Regulator Controllers are single IC solutions for highcurrent low-dropout linear voltage regulation.

Super LDO™ Regulators have the advantages of an external N-channel power MOSFET as the linear pass element.

Features

  • a dropout voltage as low as the RDS(ON) of the external power MOSFET multiplied by the output current. The output current can be as high as the largest MOSFETs can provide. The MIC5156/7/8 family operates from 3V to 36V. The MIC5156 requires an external gate drive supply to provide the higher voltage needed to drive the gate of the external MOSFET. The MIC5157 and MIC5158 each have an internal charge pump tripler to produce the gate drive voltage. The tripler is capable of providing enough volta.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MIC5156-MicrelSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MIC5158
Manufacturer Micrel Semiconductor
File Size 268.78 KB
Description Super LDO Regulator Controller
Datasheet download datasheet MIC5158 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC5166 DDR Terminator Microchip
MIC5060 Ultra Small High-Side MOSFET Driver Micrel
MIC5200 100mA Low-Dropout Regulator Microchip
MIC5202 Dual 100mA Low-Dropout Regulator Microchip
MIC5205 150mA Low-Noise LDO Regulator Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC5156 Super LDO Regulator Controller
MIC5157 Super LDO Regulator Controller
MIC5159 PROGRAMMABLE CURRENT LIMIT UCAP LDO REGULATOR CONTROLLER
MIC5162 Dual Regulator Controller
MIC5163 Dual Regulator Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

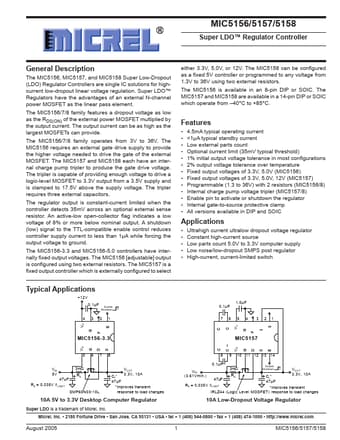

View original datasheet text
MIC5156/5157/5158 Micrel, Inc. MIC5156/5157/5158 Super LDO™ Regulator Controller General Description The MIC5156, MIC5157, and MIC5158 Super Low-Dropout (LDO) Regulator Controllers are single IC solutions for highcurrent low-dropout linear voltage regulation. Super LDO™ Regulators have the advantages of an external N-channel power MOSFET as the linear pass element. The MIC5156/7/8 family features a dropout voltage as low as the RDS(ON) of the external power MOSFET multiplied by the output current. The output current can be as high as the largest MOSFETs can provide. The MIC5156/7/8 family operates from 3V to 36V. The MIC5156 requires an external gate drive supply to provide the higher voltage needed to drive the gate of the external MOSFET.
