MIC50399 - Six Decade Counter / Display Decoder

Product Overview

Micrel Semiconductor

Part number	MIC50399
Manufacturer	Micrel Semiconductor
File Size	71.08 KB
Description	Six Decade Counter / Display Decoder
Datasheet	MIC50399 Datasheet
Note	This datasheet PDF includes multiple part numbers: MIC50399, MIC50398. Please refer to the document for exact specifications by model.

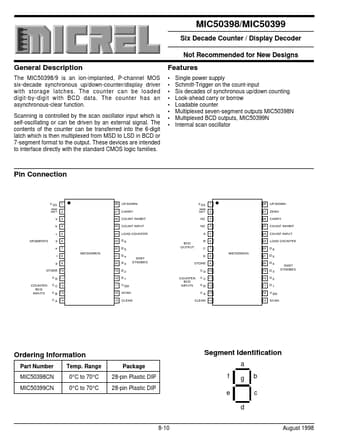

Additional preview pages of the MIC50399 datasheet.

The MIC50398/9 is an ion-implanted, P-channel MOS six-decade synchronous up/down-counter/display driver with storage latches. The counter can be loaded digit-by-digit with BCD data. The counter has an asynchronous-clear function. Scanning is controlled by the scan oscillator input which is self-oscillating or can be driven by an external signal. The contents of the counter can be transferred into the 6-digit latch which is then multiplexed from MSD to LSD in BCD or 7-segment format to the outpu.
