MIC33163 - 4MHz 1A Buck Regulator

Name: MIC33163
SKU: MIC33163-831932

Micrel Semiconductor

📥 Download Datasheet

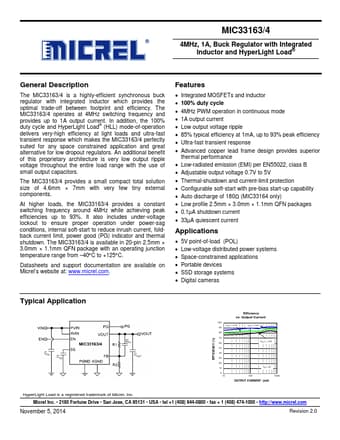

MIC33163 Datasheet Preview — Preview of MIC33163 PDF

Datasheet Details

Part number	MIC33163
Manufacturer	Micrel Semiconductor
File Size	1.35 MB
Description	4MHz 1A Buck Regulator
Datasheet	MIC33163-MicrelSemiconductor.pdf

MIC33163 Product details

Description

The MIC33163/4 is a highly-efficient synchronous buck regulator with integrated inductor which provides the optimal trade-off between footprint and efficiency.

Features

Integrated MOSFETs and inductor.
100% duty cycle.
4MHz PWM operation in continuous mode.
1A output current.
Low output voltage ripple.
85% typical efficiency at 1mA, up to 93% peak efficiency.
Ultra-fast transient response.
Advanced copper lead frame design provides superior thermal performance.
Low-radiated emission (EMI) per EN55022, class B.
Adjustable output voltage 0.7V to 5V.
Thermal-shutdow.
