MIC2111 - Single-Phase Multi-Mode High-Performance Step-Down PWM Controller

Micrel Semiconductor

The MIC2111 by Micrel Semiconductor is a Single-Phase Multi-Mode High-Performance Step-Down PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

MIC2111 Single-Phase Multi-Mode High-Performance Step-Down PWM Controller by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2111** Single-Phase Multi-Mode High-Performance Step-Down PWM Controller datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2111
Manufacturer	Micrel Semiconductor
File Size	95.70 KB
Description	Single-Phase Multi-Mode High-Performance Step-Down PWM Controller
Datasheet	MIC2111-MicrelSemiconductor.pdf

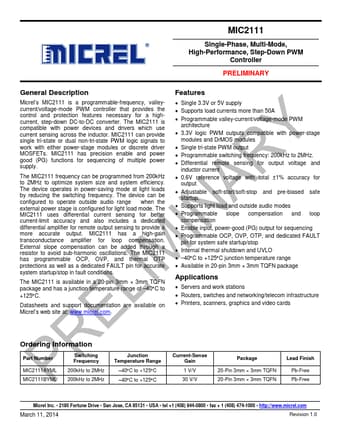

Additional preview pages of the MIC2111 datasheet.

MIC2111 Product details

Description

Micrel’s MIC2111 is a programmable-frequency, valleycurrent/voltage-mode PWM controller that provides the control and protection

Features

necessary for a highcurrent, step-down DC-to-DC converter. The MIC2111 is compatible with power devices and drivers which use current sensing across the inductor. MIC2111 can provide single tri-state or dual non-tri-state PWM logic signals to work with either power-stage modules or discrete driver MOSFETs. MIC2111 has precision enable and power good (PG) functions for sequencing of multiple power supply. The MIC2111 frequency can be programmed from 200kHz to 2MHz to optimize system size and syst.
