MAQ3203 High-Brightness LED Driver Controller

MAQ3203 Description

MAQ3203 High-Brightness LED Driver Controller with High-Side Current Sense General .
The MAQ3203 is a hysteretic, step-down, constantcurrent, High-Brightness LED (HB LED) driver.

MAQ3203 Features

* AEC-Q100 qualified
* 4.5V to 42V input voltage range
* High efficiency (>90%)
* ±5% LED current accuracy
* Dither enabled for low EMI
* High-side current sense
* Dedicated dimming control input
* Hysteretic control (no compensation!)

MAQ3203 Applications

* The MAQ3203 is well suited for lighting applications requiring a wide-input voltage range. The hysteretic control gives good supply rejection and fast response during load transients and PWM dimming. The high-side current sensing and on-chip current-sense amplifier delivers LED current with ±5% acc

📥 Download Datasheet

Preview of MAQ3203 PDF

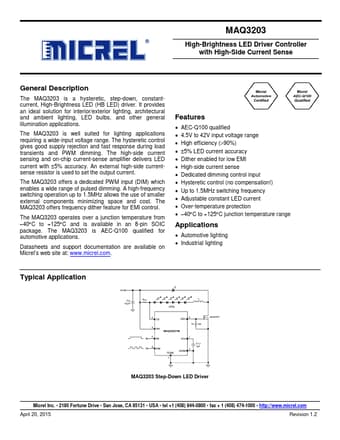

datasheet Preview Page 2 datasheet Preview Page 3
