MEL7136A - Linear Adjustable Constant Current LED Driver

Product Overview

MicrOne

📥 Download Datasheet

MEL7136A Linear Adjustable Constant Current LED Driver by MicrOne - Datasheet Preview — Datasheet preview – MEL7136A

Datasheet Details

Part number	MEL7136A
Manufacturer	MicrOne
File Size	453.48 KB
Description	Linear Adjustable Constant Current LED Driver
Datasheet	MEL7136A Datasheet
Additional preview pages of the MEL7136A datasheet.

Product details

Description

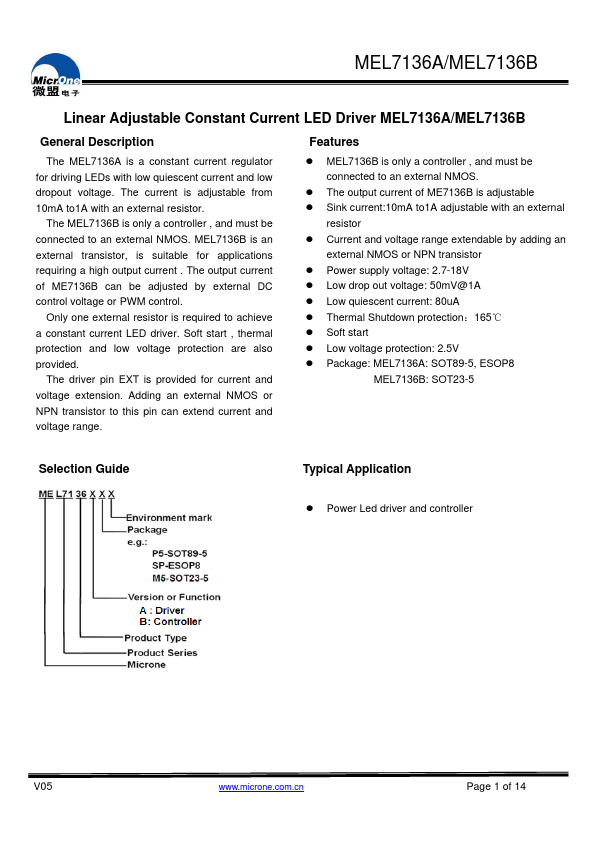

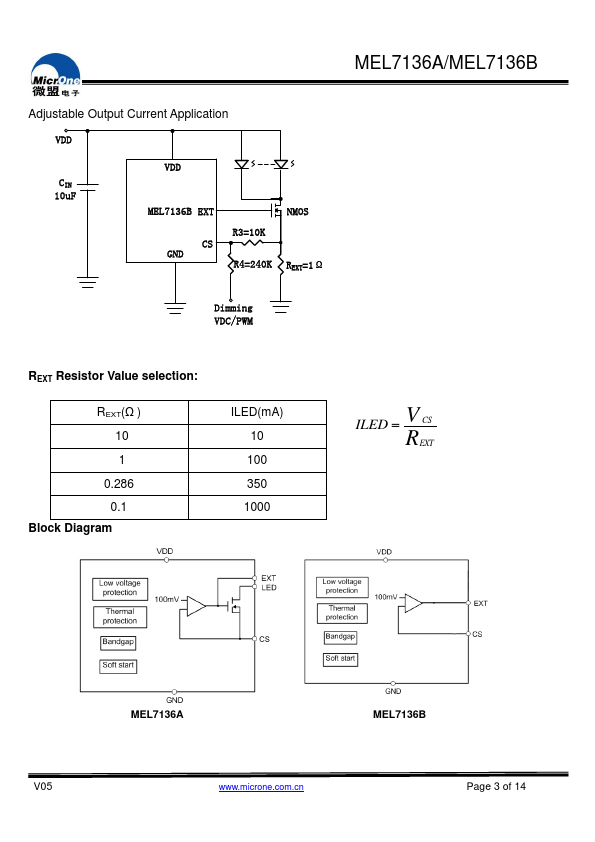

The MEL7136A is a constant current regulator for driving LEDs with low quiescent current and low dropout voltage.

Features

MEL7136B is only a controller , and must be connected to an external NMOS.
The output current of ME7136B is adjustable.
Sink current:10mA to1A adjustable with an external resistor.
Current and voltage range extendable by adding an external NMOS or NPN transistor.
Power supply voltage: 2.7-18V.
Low drop out voltage: 50mV@1A.
Low quiescent current: 80uA.
Thermal Shutdown protection：165℃.
Soft start.
Low voltage protection: 2.5V.
Package: MEL.
