CDR06BP822BW - Ceramic Chip

Download the CDR06BP822BW datasheet PDF. This datasheet also covers the CDR31BP220BFWP variant, as both devices belong to the same ceramic chip family and are provided as variant models within a single manufacturer datasheet.

Features

  • 0 F, J,K CDR31BP681B(3)W(4) 100 VOLT.
  • BX.
  • C0805 SIZE (.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CDR31BP220BFWP_MetuchenCapacitors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CDR06BP822BW
Manufacturer Metuchen Capacitors
File Size 439.70 KB
Description Ceramic Chip
Datasheet download datasheet CDR06BP822BW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CDR06 Multilayer Ceramic Chip Capacitor Vishay
CDR06xxxxxx Ceramic Chip Kemet Electronics
CDR01 Multilayer Ceramic Chip Capacitor Vishay
CDR01B-121B Multilayer Ceramic Chip Capacitor Vishay Intertechnology
CDR01B-151B Multilayer Ceramic Chip Capacitor Vishay Intertechnology

Other Datasheets by Metuchen Capacitors

Part Number Description
CDR06BP103BW Ceramic Chip
CDR06BP682BW Ceramic Chip
CDR06BX394AKW Ceramic Chip
CDR06BX474AW Ceramic Chip
CDR06xxxxxx Ceramic Chip

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

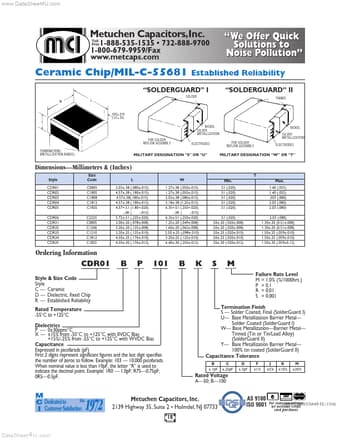

www.DataSheet4U.com Metuchen Capacitors,Inc. 1-888-535-1535 • 732-888-9700 1-800-679-9959/Fax www.metcaps.com Toll Free “We Offer Quick Solutions to Noise Pollution” Ceramic Chip/MIL-C-55681 W L Established Reliability “SOLDERGUARD” II TINNED “SOLDERGUARD” I SOLDER .020±.010 (.51±.25) T NICKEL SILVER METALLIZATION FOR SOLDER REFLOW ASSEMBLY TERMINATIONS (METALLIZATION BANDS) ELECTRODES FOR SOLDER REFLOW ASSEMBLY NICKEL SILVER METALLIZATION ELECTRODES MILITARY DESIGNATION “S” OR “U” MILITARY DESIGNATION “W” OR “Y” Dimensions—Millimeters & (Inches) Style CDR01 CDR02 CDR03 CDR04 CDR05 CDR06 CDR31 CDR32 CDR33 CDR34 CDR35 Size Code C0805 C1805 C1808 C1812 C1825 C2225 C0805 C1206 C1210 C1812 C1825 T L 2.03±.38 (.080±.015) 4.57±.38 (.180±.015) 4.57±.38(.180±.015) 4.57±.38 (.180±.015) 4.
