TH71112 FSK/ASK Receiver

TH71112 Description

TH71112 868/915MHz FSK/FM/ASK Receiver .
The TH71112 receiver IC consists of the following building blocks: " PLL synthesizer (PLL SYNTH) for generation of the first and second local oscillat.

TH71112 Features

* ! Double superhet architecture for high degree of image rejection ! FSK for digital data and FM reception for analog signal transmission ! FM/FSK demodulation with phase-coincidence demodulator ! Low current consumption in active mode and very low standby current ! Switchable LNA gain for improved d

TH71112 Applications

* because there is only one IF that might be chosen, and then the only possible choice is low-side or high-side injection of the LO1 signal (which is now the one and only LO signal in the receiver). The receiver’s double-conversion architecture requires careful frequen

📥 Download Datasheet

Preview of TH71112 PDF

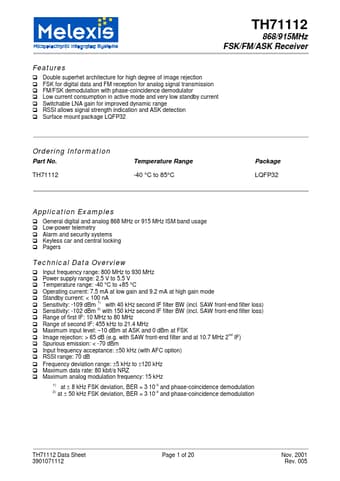

datasheet Preview Page 2 datasheet Preview Page 3
