MLX75030 - Universal Active Light Sensor Interface

Melexis

The MLX75030 by Melexis is a Universal Active Light Sensor Interface. Below is the official datasheet preview.

📥 Download Datasheet

MLX75030 Universal Active Light Sensor Interface by Melexis - Datasheet Preview — Official preview page of the **MLX75030** Universal Active Light Sensor Interface datasheet (Melexis).

Datasheet Details

Part number	MLX75030
Manufacturer	Melexis
File Size	1.88 MB
Description	Universal Active Light Sensor Interface
Datasheet	MLX75030-Melexis.pdf

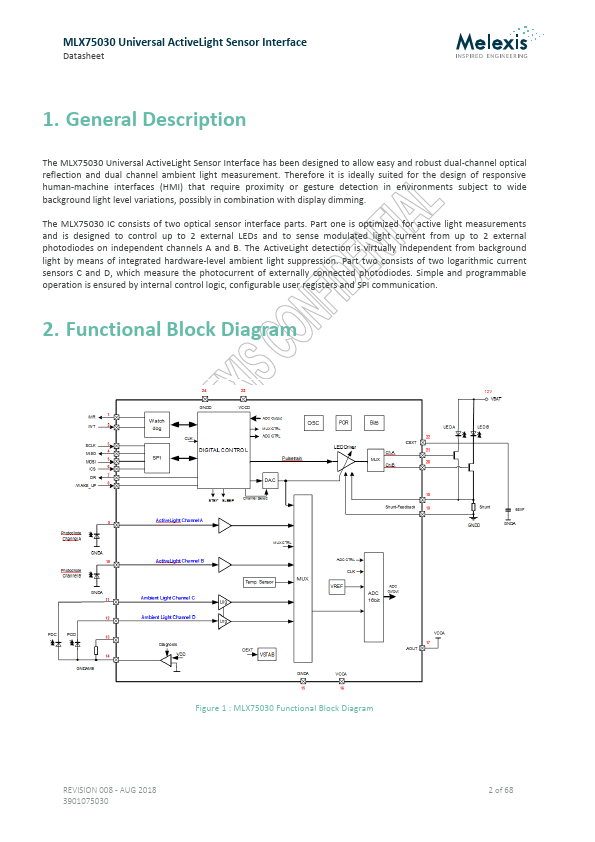

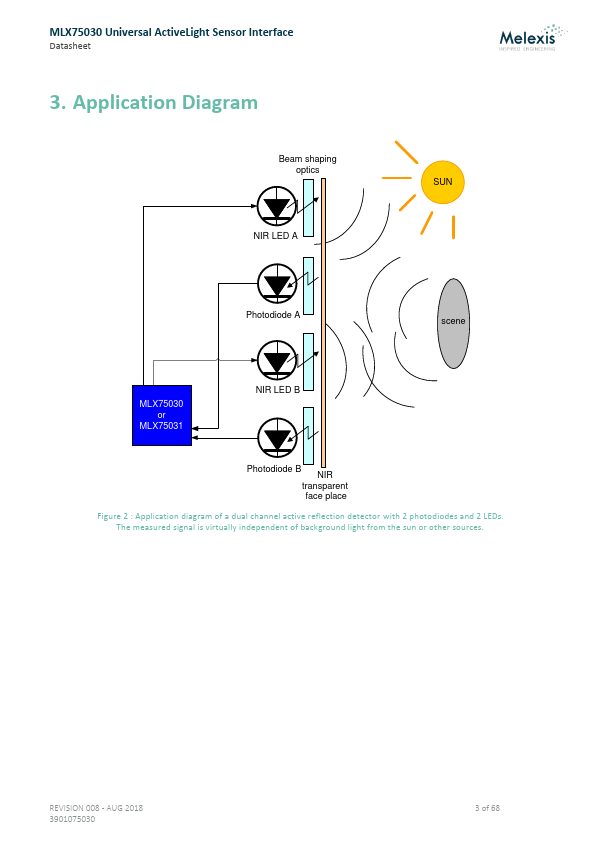

Additional preview pages of the MLX75030 datasheet.

MLX75030 Product details

Description

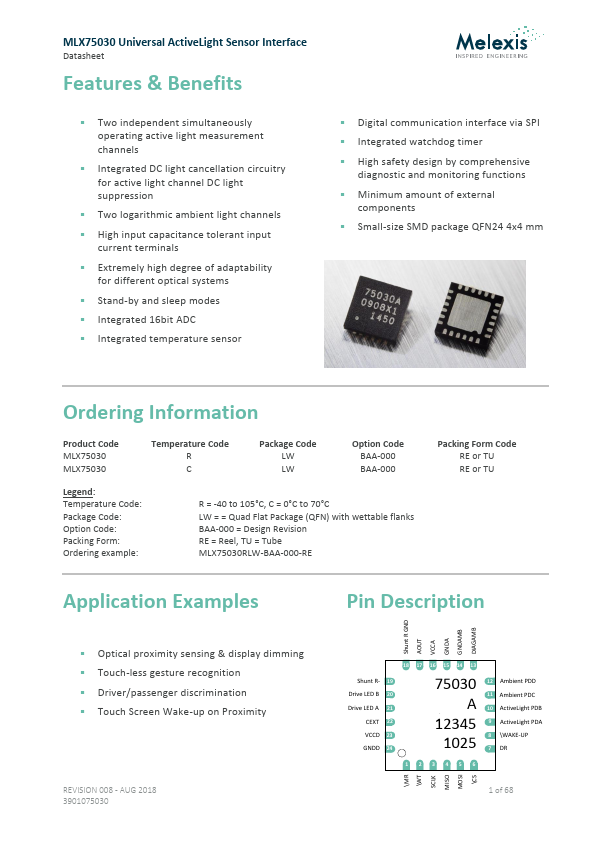

Shunt R GND AOUT VCCA GNDA GNDAMB DIAGAMB Optical proximity sensing & display dimming Touch-less gesture recognition Driver/passenger discrimination Touch Screen Wake-up on Proximity REVISION 008 - AUG 2018 3901075030 18 17 16 15 14 13 Shunt R- 19 Drive LED B 20 Drive LED A 21 CEXT 22 VCCD 23 GNDD 24 75030 A ` 12345 1025 12 Ambient PDD 11 Ambient PDC 10 ActiveLight PDB 9 ActiveLight PDA 8 WAKE-UP 7 DR 123456 MR WT SCLK MISO MOSI CS 1 of 68 MLX75030 Universal Act

Features

& Benefits.
Two independent simultaneously operating active light measurement channels.
Integrated DC light cancellation circuitry for active light channel DC light suppression.
Two logarithmic ambient light channels.
High input capacitance tolerant input current terminals.
Extremely high degree of adaptability for different optical systems.
Stand-by and sleep modes.
Integrated 16bit ADC.
Integrated temperature sensor.
Digital communication interface.
