HI1240-R22M - SMD High Current Power Inductor

Datasheet Details

Part number	HI1240-R22M
Manufacturer	Meisongbei
File Size	491.32 KB
Description	SMD High Current Power Inductor

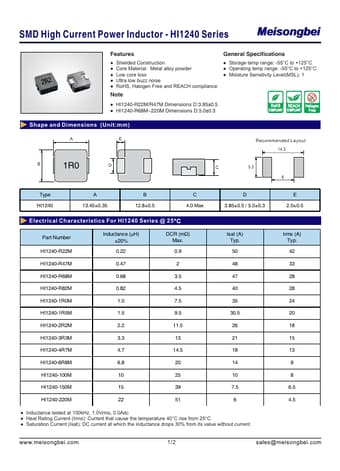

Datasheet	HI1240-R22M-Meisongbei.pdf

General Specifications.
Shielded Construction.
Core Material: Metal alloy powder.
Low core loss.
Ultra low buzz noise.
RoHS, Halogen Free and REACH compliance.
Storage temp range: -55°C to +125°C.
Operating temp range: -55°C to +125°C.
Moisture Sensitivity Level(MSL): 1 Note.
HI1240-R22M/R47M Dimensions D:3.85±0.5.
HI1240-R68M~220M Dimensions D:5.0±0.3 Shape and Dimensions (Unit:mm) A E Recommended Layout 14.5 B 1R0 D C 5.5 8 Type.
