STDP4020 - DisplayPort receiver

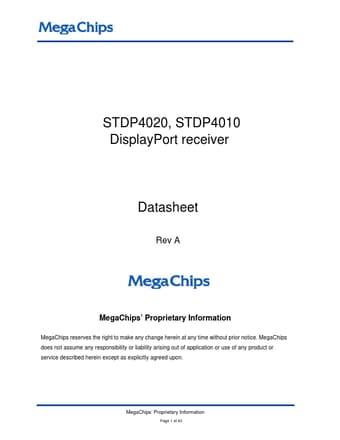

STDP4020 Datasheet Preview — Preview of STDP4020 PDF

Datasheet Details

Part number	STDP4020
Manufacturer	MegaChips
File Size	465.86 KB
Description	DisplayPort receiver
Datasheet	STDP4020-MegaChips.pdf

STDP4020 Product details

Description

The STDP4020 is a DisplayPort receiver IC for the reception of secure, high-bandwidth uncompressed digital audio-video signals targeted for applications such as DTV, LCD monitor, projector, and other types of display systems.

Features

Enhanced DisplayPort® (DP) receiver.
DP 1.1a compliant.
Embedded DisplayPort (eDP) compliant.
1, 2, or 4 lanes.
Higher bandwidth “Turbo mode” (3.24 Gbps per lane), supports:.
1920 x 1080 (FHD) 120 Hz/10-bit color video standard timings and 7.1 Ch audio.
2560 x 1600 (WQXGA), 2560 x 2048 (QSXGA) 60 Hz/10-bit color graphics and 7.1 Ch audio.
Interface compatibility with wide range of display controller ICs.
LVTTL (60.
