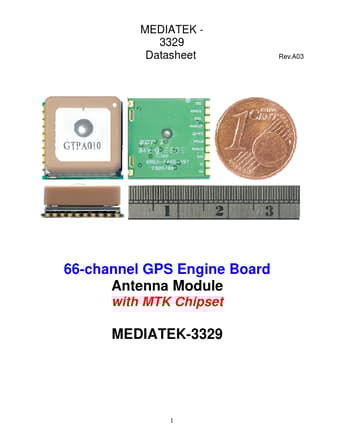

3329 - 66-channel GPS Engine Board Antenna Module

Product Overview

Datasheet Details

Part number	3329
Manufacturer	Mediatek_3329
File Size	692.61 KB
Description	66-channel GPS Engine Board Antenna Module
Datasheet	3329 Datasheet
Additional preview pages of the 3329 datasheet.

Product details

Description

2 MEDIATEK3329 Datasheet Description Rev.A03 The MEDIATEK-3329 is an ultra-compact POT (Patch On Top) GPS Module.This POT GPS receiver provides a solution that is high in position and speed accuracy performances, with high sensitivity and tracking capabilities in urban conditions.The GPS chipset inside the module is powered by MediaTek Inc., the world's leading digital media solution provider and the largest fab-less IC company in Taiwan.The module can support up to 66 channels, and is de

Features

MediaTek MT3329 Single Chip L1 Frequency, C/A code, 66 channels Support up 210 PRN channels Jammer detection and reduction Multi-path detection and compensation Dimension: 16mm x 16mm x 6mm Patch Antenna Size: 15mm x 15mm x 4mm High Sensitivity: Up to -165 dBm tracking, superior urban performances Position Accuracy: Without aid: 3m 2D-RMS DGPS (RTM,SBAS(WAAS,EGNOS,MASA)):2.5m 2D-RMS Low Power Consumption: 48mA @ acquisition, 37mA @ tracking Low Shut-Down Power Consumption: 15uA, typical DGPS(WAA.
