MAX953 - Single-Supply Op Amp + Comparator + Reference

Description

The MAX951

MAX954 feature combinations of a micropower operational amplifier, comparator, and reference in an 8-pin package.

In the MAX951 and MAX952, the comparator’s inverting input is connected to an internal 1.2V ±2% bandgap reference.

Features

  • Op Amp + Comparator + Reference in an 8-Pin μMAX Package (MAX951/MAX952).
  • 7μA Typical Supply Current (Op Amp + Comparator + Reference).
  • Comparator and Op Amp Input Range Includes Ground.
  • Outputs Swing Rail to Rail.
  • 2.4V to 7V Supply Voltage Range.
  • Unity-Gain Stable and 125kHz Decompensated AV ≥ 10V/V Op Amp Options.
  • Internal 1.2V ±2% Bandgap Reference.
  • Internal Comparator Hysteresis.
  • Op Amp Capable of Driv.

📥 Download Datasheet

📁 Similar Datasheet

  • MAX9532 - DirectDrive Video Amplifier (Maxim Integrated Products)
  • MAX9539 - Graphics Video Sync Adder/Extractor (Maxim Integrated Products)
  • MAX9500 - Triple-Channel HDTV Filters (Maxim Integrated Products)
  • MAX9501 - Triple-Channel HDTV Filters (Maxim Integrated Products)
  • MAX9502 - 2.5V Video Amplifier (Maxim Integrated Products)
  • MAX9503 - DirectDrive Video Amplifier (Maxim Integrated Products)
  • MAX9505 - DirectDrive Video Amplifier (Maxim Integrated Products)
  • MAX9507 - 1.8V DirectDrive Video Filter Amplifier (Maxim Integrated Products)
  • MAX9508 - Video Filter Amplifier (Maxim Integrated Products)
  • MAX9509 - DirectDrive Video Filter Amplifiers (Maxim Integrated)
Other Datasheets by Maxim
  • MAX951 - Single-Supply Op Amp + Comparator + Reference
  • MAX952 - Single-Supply Op Amp + Comparator + Reference
  • MAX954 - Single-Supply Op Amp + Comparator + Reference
  • MAX905 - High-Speed / Positive Edge-Triggered / ECS-Compatible Voltage Comparators
  • MAX906 - ECS-Compatible Voltage Comparators
  • MAX907 - Single/Dual/Quad High-Speed / Ultra Low-Power / Single-Supply TTL Comparators
  • MAX9075 - Low-Cost / Ultra-Small / 3A Single-Supply Comparators
  • MAX9077 - Low-Cost / Ultra-Small / 3A Single-Supply Comparators

Full PDF Text Transcription

Click to expand full text

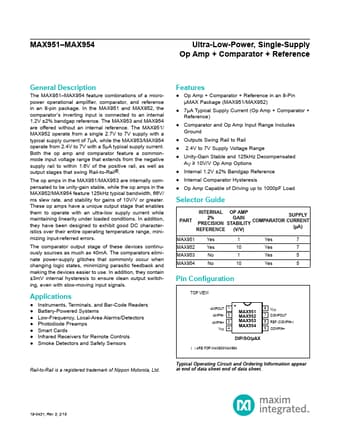

MAX951–MAX954 Ultra-Low-Power, Single-Supply Op Amp + Comparator + Reference General Description The MAX951–MAX954 feature combinations of a micropower operational amplifier, comparator, and reference in an 8-pin package. In the MAX951 and MAX952, the comparator’s inverting input is connected to an internal 1.2V ±2% bandgap reference. The MAX953 and MAX954 are offered without an internal reference. The MAX951/ MAX952 operate from a single 2.7V to 7V supply with a typical supply current of 7μA, while the MAX953/MAX954 operate from 2.4V to 7V with a 5μA typical supply current. Both the op amp and comparator feature a commonmode input voltage range that extends from the negative supply rail to within 1.6V of the positive rail, as well as output stages that swing Rail-to-Rail®.
