MAX811 - 4-Pin uP Voltage Monitors

Maxim

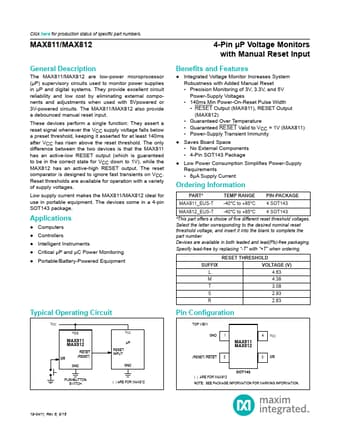

The MAX811 by Maxim is a 4-Pin uP Voltage Monitors. Below is the official datasheet preview.

📥 Download Datasheet

MAX811 4-Pin uP Voltage Monitors by Maxim - Datasheet Preview — Official preview page of the MAX811 4-Pin uP Voltage Monitors datasheet (Maxim).

Datasheet Details

Part number	MAX811
Manufacturer	Maxim
File Size	943.29 KB
Description	4-Pin uP Voltage Monitors
Datasheet	MAX811_MaximIntegratedProducts.pdf
Additional preview pages of the MAX811 datasheet.

MAX811 Product details

Description

The MAX811/MAX812 are low-power microprocessor (μP) supervisory circuits used to monitor power supplies in μP and digital systems.

Features

Integrated Voltage Monitor Increases System Robustness with Added Manual Reset.
Precision Monitoring of 3V, 3.3V, and 5V Power-Supply Voltages.
140ms Min Power-On-Reset Pulse Width.
RESET Output (MAX811), RESET Output (MAX812).
Guaranteed Over Temperature.
Guaranteed RESET Valid to VCC = 1V (MAX811).
Power-Supply Transient Immunity.
Saves Board Space.
No External Components.
4-Pin SOT143 Package.
