MAX684 - 3.3V-Input to Regulated 5V-Output Charge Pumps

Name: MAX684
SKU: MAX684-444014

Maxim

The MAX684 by Maxim is a 3.3V-Input to Regulated 5V-Output Charge Pumps. Below is the official datasheet preview.

Datasheet Details

Part number	MAX684
Manufacturer	Maxim
File Size	154.13 KB
Description	3.3V-Input to Regulated 5V-Output Charge Pumps
Datasheet	MAX684_MaximIntegratedProducts.pdf

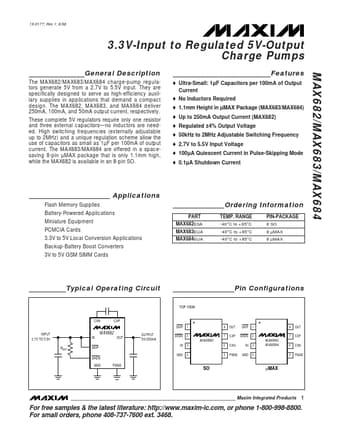

Additional preview pages of the MAX684 datasheet.

The MAX682/MAX683/MAX684 charge-pump regulators generate 5V from a 2.7V to 5.5V input. no inductors are needed.

o Ultra-Small: 1µF Capacitors per 100mA of Output Current o No Inductors Required o 1.1mm Height in µMAX Package (MAX683/MAX684) o Up to 250mA Output Current (MAX682) o Regulated ±4% Output Voltage o 50kHz to 2MHz Adjustable Switching Frequency o 2.7V to 5.5V Input Voltage o 100µA Quiescent Current in Pulse-Skipping Mode o 0.1µA Shutdown Current MAX682/MAX683/MAX684.
