MAX6701 - Low-Voltage / SOT23 uP Supervisors

Maxim

The MAX6701 by Maxim is a Low-Voltage / SOT23 uP Supervisors. Below is the official datasheet preview.

📥 Download Datasheet

MAX6701 Low-Voltage / SOT23 uP Supervisors by Maxim - Datasheet Preview — Official preview page of the **MAX6701** Low-Voltage / SOT23 uP Supervisors datasheet (Maxim).

Datasheet Details

Part number	MAX6701
Manufacturer	Maxim
File Size	431.23 KB
Description	Low-Voltage / SOT23 uP Supervisors
Datasheet	MAX6701_MaximIntegratedProducts.pdf

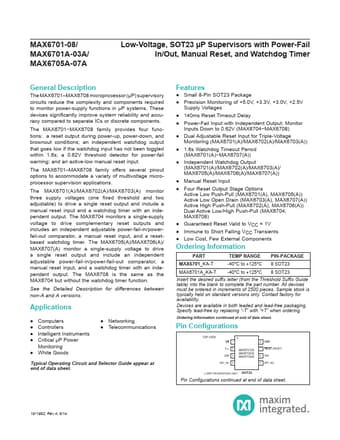

Additional preview pages of the MAX6701 datasheet.

MAX6701 Product details

Description

The MAX6701 MAX6708 microprocessor (µP) supervisory circuits reduce the complexity and components required to monitor power-supply functions in µP systems. MAX6708 family provides four functions: a reset output during power-up, power-down, and brownout conditions; an independent watchdog output that goes low if the watchdog input has not been toggled wi

Features

Small 8-Pin SOT23 Package.
Precision Monitoring of +5.0V, +3.3V, +3.0V, +2.5V Supply Voltages.
140ms Reset Timeout Delay.
Power-Fail Input with Independent Output; Monitor Inputs Down to 0.62V (MAX6704.
MAX6708).
Dual Adjustable Reset Input for Triple-Voltage Monitoring (MAX6701(A)/MAX6702(A)/MAX6703(A)).
1.6s Watchdog Timeout Period (MAX6701(A).
MAX6707(A)).
Independent Watchdog Output (MAX6701(A)/MAX6702(A)/MA.
