MAX667 - +5V/Programmable Low-Dropout Voltage Regulator

Name: MAX667
SKU: MAX667-443771

Maxim

The MAX667 by Maxim is a +5V/Programmable Low-Dropout Voltage Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	MAX667
Manufacturer	Maxim
File Size	78.98 KB
Description	+5V/Programmable Low-Dropout Voltage Regulator
Datasheet	MAX667_MaximIntegratedProducts.pdf

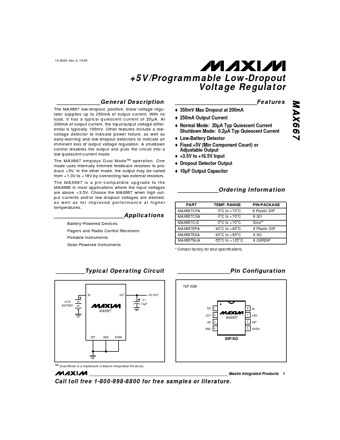

Additional preview pages of the MAX667 datasheet.

The MAX667 low-dropout, positive, linear voltage regulator supplies up to 250mA of output current.

include a lowvoltage detector to indicate power failure, as well as early-warning and low-dropout detectors to indicate an imminent loss of output voltage regulation. A shutdown control disables the output and puts the circuit into a low quiescent-current mode. The MAX667 employs Dual Mode™ operation. One mode uses internally trimmed feedback resistors to produce +5V. In the other mode, the output may be varied from +1.3V to +16V by connecting two external resistors. The MAX667 is a pin-compatib.
