MAX6476 - 300mA LDO Linear Regulators

Product Overview

Maxim

Part number	MAX6476
Manufacturer	Maxim
File Size	394.30 KB
Description	300mA LDO Linear Regulators
Datasheet	MAX6476 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX6476, MAX. Please refer to the document for exact specifications by model.

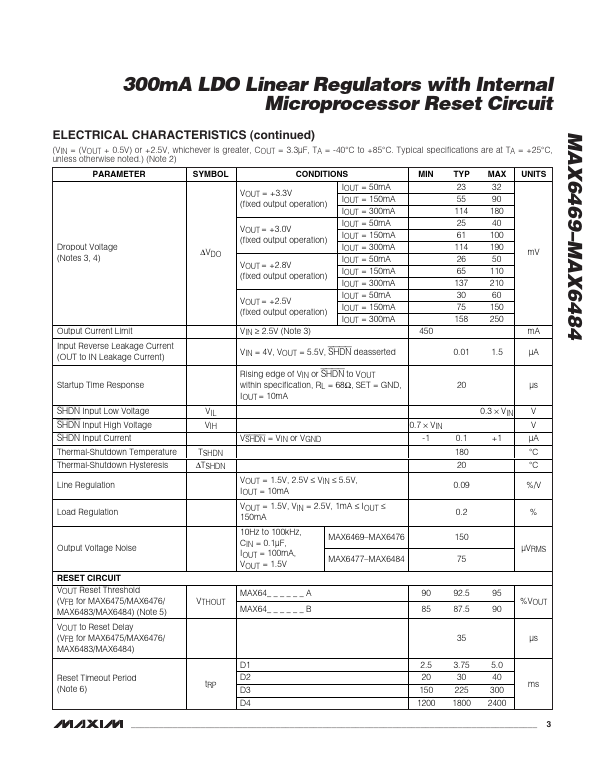

Additional preview pages of the MAX6476 datasheet.

o 3 ✕ 3 UCSP, 6-Pin SOT23, and 8-Pin QFN Packages o Preset +1.5V to +3.3V Output (100mV Increments) o SET Pin for Adjustable Output Voltage o 75µVRMS LDO Output Voltage Noise (MAX6477.
MAX6484) o ±2.0% Accuracy Over Temperature o Guaranteed 300mA Output Current o Low Dropout Voltage 55mV at 150mA 114mV at 300mA o 82µA Supply Current, 0.1µA Shutdown Current o Input Reverse Current, Thermal and Short-Circuit Protection o Microprocessor Reset with Four Timeout Options o Push-Pull or Open-Dra.
