MAX492 - Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps

Maxim

The MAX492 by Maxim is a Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps. Below is the official datasheet preview.

📥 Download Datasheet

MAX492 Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps by Maxim - Datasheet Preview — Official preview page of the **MAX492** Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps datasheet (Maxim).

Datasheet Details

Part number	MAX492
Manufacturer	Maxim
File Size	230.88 KB
Description	Single/Dual/Quad / Micropower / Single-Supply Rail-to-Rail Op Amps
Datasheet	MAX492_MaximIntegratedProducts.pdf

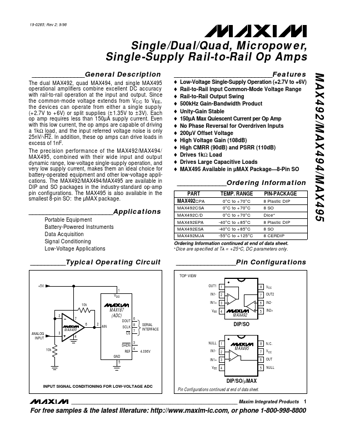

Additional preview pages of the MAX492 datasheet.

MAX492 Product details

Description

The dual MAX492, quad MAX494, and single MAX495 operational amplifiers combine excellent DC accuracy with rail-to-rail operation at the input and output.

Features

o o o o o o o o o o o o o Low-Voltage Single-Supply Operation (+2.7V to +6V) Rail-to-Rail Input Common-Mode Voltage Range Rail-to-Rail Output Swing 500kHz Gain-Bandwidth Product Unity-Gain Stable 150µA Max Quiescent Current per Op Amp No Phase Reversal for Overdriven Inputs 200µV Offset Voltage High Voltage Gain (108dB) High CMRR (90dB) and PSRR (110dB) Drives 1kΩ Load Drives Large Capacitive Loads MAX495 Available in µMAX Package.
8-Pin SO MAX492/MAX494/MAX495 ______________Ordering In.
