MAX4821, MAX4820 - +3.3V/+5V / 8-Channel / Cascadable Relay Drivers

Maxim

The MAX4821 by Maxim is a +3.3V/+5V / 8-Channel / Cascadable Relay Drivers. Below is the official datasheet preview.

Datasheet Details

Part number	MAX4821, MAX4820
Manufacturer	Maxim
File Size	428.73 KB
Description	+3.3V/+5V / 8-Channel / Cascadable Relay Drivers
Datasheet	MAX4820_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX4821, MAX4820. Please refer to the document for exact specifications by model.

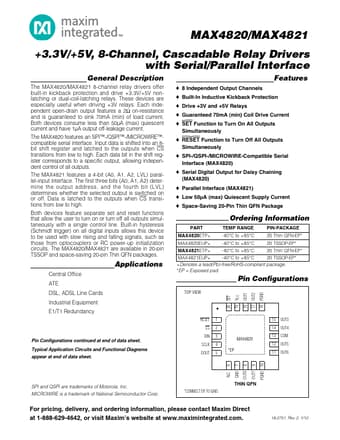

Additional preview pages of the MAX4821 datasheet.

The MAX4820/MAX4821 8-channel relay drivers offer built-in kickback protection and drive +3.3V/+5V nonlatching or dual-coil-latching relays.

a 2Ω on-resistance and is guaranteed to sink 70mA (min) of load current. Both devices consume less than 50µA (max) quiescent current and have 1µA output off-leakage current. The MAX4820 features an SPI™-/QSPI™-/.
