MAX4675 - 3 Single SPST Analog Switches

Product Overview

Maxim

Part number	MAX4675
Manufacturer	Maxim
File Size	195.26 KB
Description	3 Single SPST Analog Switches
Datasheet	MAX4675 Datasheet

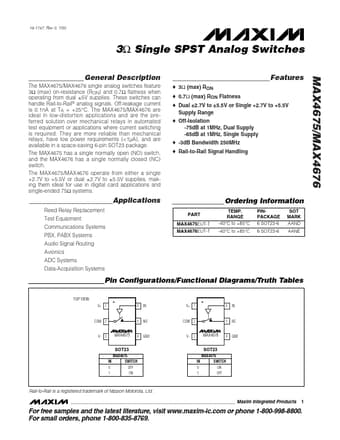

Additional preview pages of the MAX4675 datasheet.

The MAX4675/MAX4676 single analog switches feature 3Ω (max) on-resistance (RON) and 0.7Ω flatness when operating from dual ±5V supplies.

o 3Ω (max) RON o 0.7Ω (max) RON Flatness o Dual ±2.7V to ±5.5V or Single +2.7V to +5.5V Supply Range o Off-Isolation -75dB at 1MHz, Dual Supply -65dB at 1MHz, Single Supply o -3dB Bandwidth 250MHz o Rail-to-Rail Signal Handling MAX4675/MAX4676 ________________________.
