MAX4462 - SOT23 / 3V/5V / Single-Supply / Rail-to-Rail Instrumentation Amplifiers

Download the MAX4462 datasheet PDF. This datasheet also covers the MAX variant, as both devices belong to the same sot23 / 3v/5v / single-supply / rail-to-rail instrumentation amplifiers family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX4460/MAX4461/MAX4462 are instrumentation amplifiers with precision specifications, low-power consumption, and excellent gain-bandwidth product.

Proprietary design techniques allow ground-sensing capability combined with ultra-low input current and increased common-mode rejection performance.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX-4460.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX4465 Low-Cost Micropower Microphone Preamplifiers Maxim Integrated
MAX4466 Low-Cost Micropower Microphone Preamplifiers Maxim Integrated
MAX4467 Low-Cost Micropower Microphone Preamplifiers Maxim Integrated
MAX4468 Low-Cost Micropower Microphone Preamplifiers Maxim Integrated
MAX4469 Low-Cost Micropower Microphone Preamplifiers Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX4460 SOT23 / 3V/5V / Single-Supply / Rail-to-Rail Instrumentation Amplifiers
MAX4461 SOT23 / 3V/5V / Single-Supply / Rail-to-Rail Instrumentation Amplifiers
MAX4464 Single/Dual/Quad / !.8V/750nA / SC70 / Rail-to-Rail Op Amps
MAX440 High-Speed Video Multiplixer/Amplifier
MAX44004 Digital Ambient Light Sensor

Full PDF Text Transcription

Click to expand full text

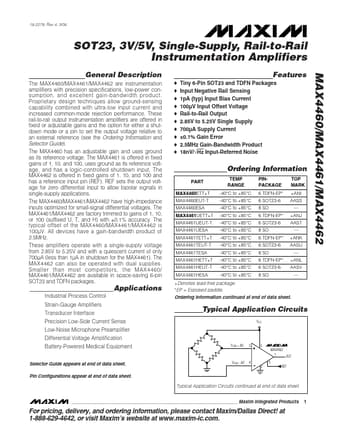

19-2279; Rev 4; 3/06 MAX4460/MAX4461/MAX4462 SOT23, 3V/5V, Single-Supply, Rail-to-Rail Instrumentation Amplifiers General Description The MAX4460/MAX4461/MAX4462 are instrumentation amplifiers with precision specifications, low-power consumption, and excellent gain-bandwidth product. Proprietary design techniques allow ground-sensing capability combined with ultra-low input current and increased common-mode rejection performance. These rail-to-rail output instrumentation amplifiers are offered in fixed or adjustable gains and the option for either a shutdown mode or a pin to set the output voltage relative to an external reference (see the Ordering Information and Selector Guide). The MAX4460 has an adjustable gain and uses ground as its reference voltage.
