MAX4452 - Single-Supply Op Amps

Product Overview

Maxim

Datasheet Details

Part number	MAX4452
Manufacturer	Maxim
File Size	753.01 KB
Description	Single-Supply Op Amps
Datasheet	MAX4452 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4452, MAX. Please refer to the document for exact specifications by model.

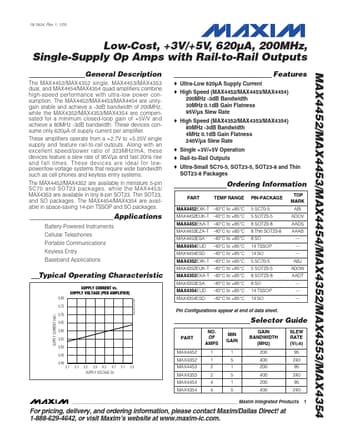

Additional preview pages of the MAX4452 datasheet.

Product details

Description

The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption.

Features

o Ultra-Low 620µA Supply Current o High Speed (MAX4452/MAX4453/MAX4454) 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness 95V/µs Slew Rate o High Speed (MAX4352/MAX4353/MAX4354) 80MHz -3dB Bandwidth 4MHz 0.1dB Gain Flatness 240V/µs Slew Rate o Single +3V/+5V Operation o Rail-to-Rail Outputs o Ultra-Small SC70-5, SOT23-5, SOT23-8 and Thin SOT23-8 Packages Ordering Information PART TEMP RANGE PIN-.
