MAX4022 Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers

Maxim

Description

19-1284; Rev 0; 10/97 Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23 _______________General .
The MAX4014/MAX4017/MAX4019/MAX4022 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and l.

📥 Download Datasheet

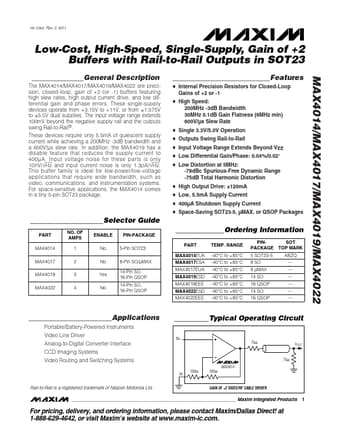

MAX4022 Datasheet Preview — Preview of MAX4022 PDF

Datasheet Specifications

Part number: MAX4022
Manufacturer: Maxim
File Size: 257.43 KB
Datasheet: MAX4022_MaximIntegratedProducts.pdf
Description: Low-Cost / High-Speed / Single-Supply / Gain of +2 Buffers

Features

* o Internal Precision Resistors for Closed-Loop Gains of +2 or -1 o High Speed: 200MHz -3dB Bandwidth 30MHz 0.1dB Gain Flatness (6MHz min) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Outputs Swing Rail-to-Rail o Input Voltage Range Extends Beyond VEE o Low Differential Gain/Phase: 0.04%/0.02° o
