MAX3774 - Dual-Rate Fibre Channel Repeaters

Product Overview

Maxim

Datasheet Details

Part number	MAX3774
Manufacturer	Maxim
File Size	220.60 KB
Description	Dual-Rate Fibre Channel Repeaters
Datasheet	MAX3774 Datasheet

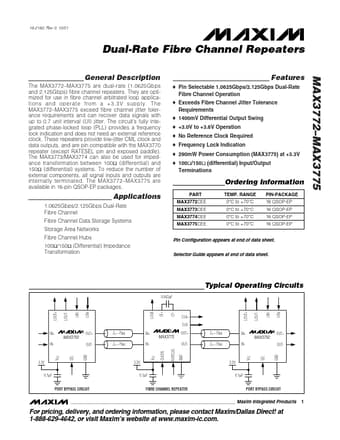

Additional preview pages of the MAX3774 datasheet.

Product details

Description

The MAX3772 MAX3775 are dual-rate (1.0625Gbps and 2.125Gbps) fibre channel repeaters. MAX3775 exceed fibre channel jitter tolerance requirements and can recover data signals with up to 0.7 unit interval (UI) jitter.

Features

o Pin Selectable 1.0625Gbps/2.125Gbps Dual-Rate Fibre Channel Operation o Exceeds Fibre Channel Jitter Tolerance Requirements o 1400mV Differential Output Swing o +3.0V to +3.6V Operation o No Reference Clock Required o Frequency Lock Indication o 290mW Power Consumption (MAX3775) at +3.3V o 100Ω/150Ω (differential) Input/Output Terminations MAX3772.
MAX3775 Ordering Information PART MAX3772CEE MAX3773CEE MAX3774CEE MAX3775CEE TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +7.
