MAX351 - Precision / Quad / SPST Analog Switches

Name: MAX351
SKU: MAX351-497896

Maxim

The MAX351 by Maxim is a Precision / Quad / SPST Analog Switches. Below is the official datasheet preview.

Datasheet Details

Part number	MAX351
Manufacturer	Maxim
File Size	451.36 KB
Description	Precision / Quad / SPST Analog Switches
Datasheet	MAX351_MaximIntegratedProducts.pdf

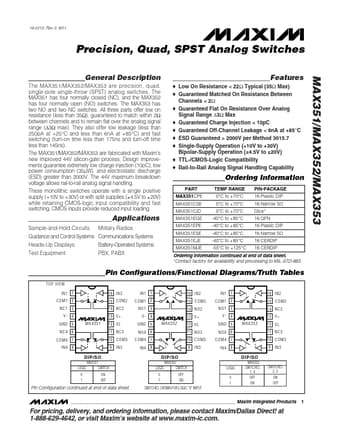

Additional preview pages of the MAX351 datasheet.

The MAX351/MAX352/MAX353 are precision, quad, single-pole single-throw (SPST) analog switches.

o Low On Resistance < 22Ω Typical (35Ω Max) o Guaranteed Matched On Resistance Between Channels < 2Ω o Guaranteed Flat On Resistance Over Analog Signal Range ∆3Ω Max o Guaranteed Charge Injection < 10pC o Guaranteed Off-Channel Leakage < 6nA at +85°C o ESD Guaranteed > 2000V per Method 3015.7 o Single-Supply Operation (+10V to +30V) Bipolar-Supply Operation (±4.5V to ±20V) o TTL-/CMOS-Logic Compatibility o Rail-to-Rail Analog Signal Handling Capability MAX351/MAX352/MAX353 ______________Orderi.
