MAX3430 - 80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver

Name: MAX3430
SKU: MAX3430-497737

Maxim

The MAX3430 by Maxim is a 80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

MAX3430 80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver by Maxim - Datasheet Preview — Official preview page of the **MAX3430** 80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver datasheet (Maxim).

Datasheet Details

Part number	MAX3430
Manufacturer	Maxim
File Size	238.40 KB
Description	80V Fault-Protected / Fail-Safe / 1/4-Unit Load / #.3V RS-485 Transceiver
Datasheet	MAX3430_MaximIntegratedProducts.pdf

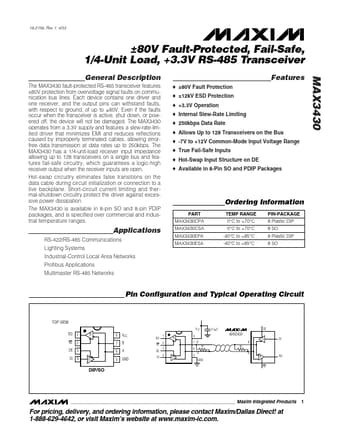

Additional preview pages of the MAX3430 datasheet.

MAX3430 Product details

Description

The MAX3430 fault-protected RS-485 transceiver

Features

±80V protection from overvoltage signal faults on communication bus lines. Each device contains one driver and one receiver, and the output pins can withstand faults, with respect to ground, of up to ±80V. Even if the faults occur when the transceiver is active, shut down, or powered off, the device will not be damaged. The MAX3430 operates from a 3.3V supply and features a slew-rate-limited driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing errorf.
