MAX3281E - SOT23 RS-485/RS-422 True Fail-Safe Receivers

Description

The MAX3280E/MAX3281E/MAX3283E/MAX3284E are single receivers designed for RS-485 and RS-422 communication.

These devices guarantee data rates up to 52Mbps, even with a 3V power supply.

Features

  • a voltage logic pin that allows compatibility with low-voltage logic levels, as in digital FPGAs/ASICs. On the MAX3284E, the voltage threshold for a logic high is user-defined by setting VL in the range from 1.65V to VCC. The MAX3284E is also offered in a 6-pin SOT23 package.

📥 Download Datasheet

📁 Similar Datasheet

  • MAX3287 - LAN Laser Drivers (Maxim Integrated)
  • MAX3288 - LAN Laser Drivers (Maxim Integrated)
  • MAX3289 - LAN Laser Drivers (Maxim Integrated)
  • MAX3202E - ESD Protection Arrays (Maxim Integrated)
  • MAX3203E - ESD Protection Arrays (Maxim Integrated)
  • MAX3204E - ESD Protection Arrays (Maxim Integrated)
  • MAX3205E - (MAX3205E - MAX3208E) Dual / Quad and Hex High-Speed Differential ESD-Protection ICs (Maxim Integrated Products)
  • MAX3206E - ESD Protection Arrays (Maxim Integrated)
  • MAX3207E - (MAX3205E - MAX3208E) Dual / Quad and Hex High-Speed Differential ESD-Protection ICs (Maxim Integrated Products)
  • MAX3208E - (MAX3205E - MAX3208E) Dual / Quad and Hex High-Speed Differential ESD-Protection ICs (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX328 - Ultra-Low Leakage Monolithic CMOS Analog Multiplexers
  • MAX3280E - SOT23 RS-485/RS-422 True Fail-Safe Receivers
  • MAX3283E - SOT23 RS-485/RS-422 True Fail-Safe Receivers
  • MAX3284E - SOT23 RS-485/RS-422 True Fail-Safe Receivers
  • MAX3286 - 3.0V to 5.5V / 1.25Gbps/2.5Gbps LAN Laser Drivers
  • MAX320 - Precision / Dual-Supply / SPST Analog Switches
  • MAX3209E - 15kV ESD-Protected / 12V / Dual RS-232 Serial Port
  • MAX3212 - +2.7V to+3.6V-Powered / 1A Supply Current / 3-Driver/5-Receiver / True RS-232Transceiver

Full PDF Text Transcription

Click to expand full text

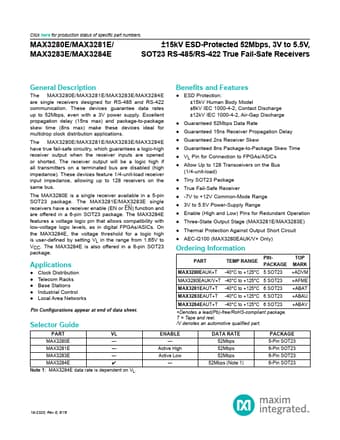

MAX3280E/MAX3281E/ MAX3283E/MAX3284E ±15kV ESD-Protected 52Mbps, 3V to 5.5V, SOT23 RS-485/RS-422 True Fail-Safe Receivers General Description The MAX3280E/MAX3281E/MAX3283E/MAX3284E are single receivers designed for RS-485 and RS-422 communication. These devices guarantee data rates up to 52Mbps, even with a 3V power supply. Excellent propagation delay (15ns max) and package-to-package skew time (8ns max) make these devices ideal for multidrop clock distribution applications. The MAX3280E/MAX3281E/MAX3283E/MAX3284E have true fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are opened or shorted. The receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance).
