MAX3266 - Low-Noise Transimpedance Preamplifiers

Name: MAX3266
SKU: MAX3266-497590

Maxim

The MAX3266 by Maxim is a Low-Noise Transimpedance Preamplifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MAX3266
Manufacturer	Maxim
File Size	894.94 KB
Description	Low-Noise Transimpedance Preamplifiers
Datasheet	MAX3266_MaximIntegratedProducts.pdf

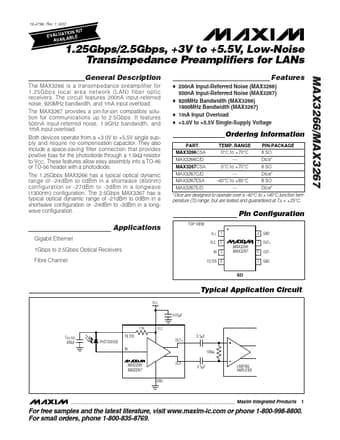

Additional preview pages of the MAX3266 datasheet.

The MAX3266 is a transimpedance preamplifier for 1.25Gbps local area network (LAN) fiber optic receivers.

200nA input-referred noise, 920MHz bandwidth, and 1mA input overload. The MAX3267 provides a pin-for-pin compatible solution for communications up to 2.5Gbps. It features 500nA input-referred noise, 1.9GHz bandwidth, and 1mA input overload. Both devices operate from a +3.0V to +5.5V single supply and require no compensation capacitor. They also include a space-saving filter connection that provides positive bias for the photodiode through a 1.5kΩ resistor to VCC. These features allow easy assemb.
