MAX3131 - 3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface

Maxim

The MAX3131 by Maxim is a 3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface. Below is the official datasheet preview.

📥 Download Datasheet

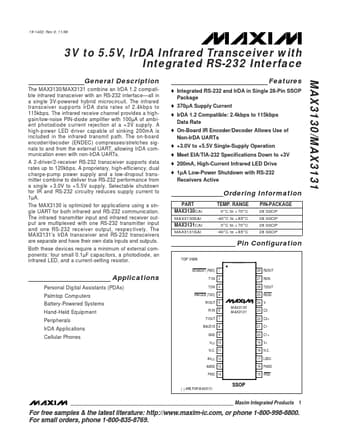

MAX3131 3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface by Maxim - Datasheet Preview — Official preview page of the **MAX3131** 3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface datasheet (Maxim).

Datasheet Details

Part number	MAX3131
Manufacturer	Maxim
File Size	220.03 KB
Description	3V to 5.5V / IrDA Infrared Transceiver with Integrated RS-232 Interface
Datasheet	MAX3131_MaximIntegratedProducts.pdf
Additional preview pages of the MAX3131 datasheet.

MAX3131 Product details

Description

The MAX3130/MAX3131 combine an IrDA 1.2 compatible infrared transceiver with an RS-232 interface all in a single 3V-powered hybrid microcircuit.

Features

o Integrated RS-232 and IrDA in Single 28-Pin SSOP Package o 370µA Supply Current o IrDA 1.2 Compatible: 2.4kbps to 115kbps Data Rate o On-Board IR Encoder/Decoder Allows Use of Non-IrDA UARTs o +3.0V to +5.5V Single-Supply Operation o Meet EIA/TIA-232 Specifications Down to +3V o 200mA, High-Current Infrared LED Drive o 1µA Low-Power Shutdown with RS-232 Receivers Active MAX3130/MAX3131 Ordering Information PART MAX3130CAI MAX3130EAI MAX3131CAI MAX3131EAI TEMP. RANGE 0°C to +70°C -40°C to +85.
