MAX308 - Precision / 8-Channel/Dual 4-Channel / High-Performance / CMOS Analog Multiplexers

Product Overview

Maxim

Part number	MAX308
Manufacturer	Maxim
File Size	462.45 KB
Description	Precision / 8-Channel/Dual 4-Channel / High-Performance / CMOS Analog Multiplexers
Datasheet	MAX308 Datasheet

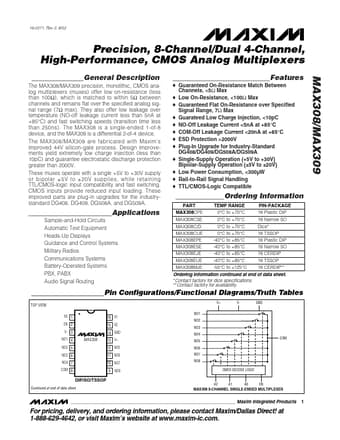

Additional preview pages of the MAX308 datasheet.

____________________________

The MAX308/MAX309 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 5Ω between channels and remains flat over the specified analog signal range (7Ω max). They also offer low leakage over temperature (NO-off leakage current less than 5nA at +85°C) and fast switching speeds (transition time less than 250ns). The MAX308 is a single-ended 1-of-8 device, and the MAX309 is a differential 2-of-4 device. The MAX308/MAX309 are fa.
