MAX2701, MAX - 2.1 GHz to 2.5 GHz direct downconversion receiver

Name: MAX2701
SKU: MAX2701-446149

Maxim

The MAX2701 by Maxim is a 2.1 GHz to 2.5 GHz direct downconversion receiver. Below is the official datasheet preview.

Datasheet Details

Part number	MAX2701, MAX
Manufacturer	Maxim
File Size	382.25 KB
Description	2.1 GHz to 2.5 GHz direct downconversion receiver
Datasheet	MAX-2700.pdf
Note	This datasheet PDF includes multiple part numbers: MAX2701, MAX. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX2701 datasheet.

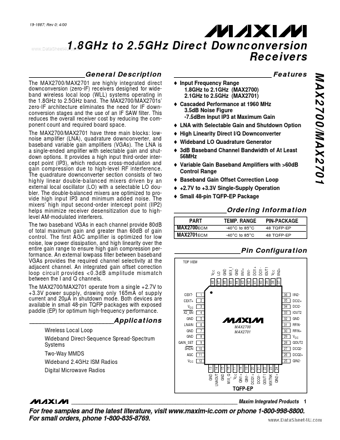

o Input Frequency Range 1.8GHz to 2.1GHz (MAX2700) 2.1GHz to 2.5GHz (MAX2701) o Cascaded Performance at 1960 MHz 3.5dB Noise Figure -7.5dBm Input IP3 at Maximum Gain o LNA with Selectable Gain and Shutdown Option o High Linearity Direct I/Q Downconverter o Wideband LO Quadrature Generator o 3dB Baseband Channel Bandwidth of At Least 56MHz o Variable Gain Baseband Amplifiers with >60dB Control Range o Baseband Gain Offset Correction Loop o +2.7V to +3.3V Single-Supply Operation o Small 48-pin TQF.
