MAX2015 - 0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller

Maxim

The MAX2015 by Maxim is a 0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller. Below is the official datasheet preview.

📥 Download Datasheet

MAX2015 0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller by Maxim - Datasheet Preview — Official preview page of the **MAX2015** 0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller datasheet (Maxim).

Datasheet Details

Part number	MAX2015
Manufacturer	Maxim
File Size	583.31 KB
Description	0.1GHz to 2.5GHz / 75dB Logarithmic Detector/Controller
Datasheet	MAX2015_MaximIntegratedProducts.pdf

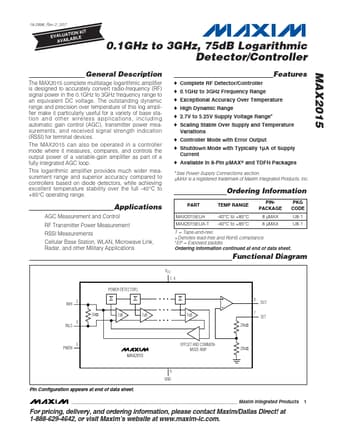

Additional preview pages of the MAX2015 datasheet.

MAX2015 Product details

Description

The MAX2015 complete multistage logarithmic amplifier is designed to accurately convert radio-frequency (RF) signal power in the 0.1GHz to 3GHz frequency range to an equivalent DC voltage.

Features

Complete RF Detector/Controller.
0.1GHz to 3GHz Frequency Range.
Exceptional Accuracy Over Temperature.
High Dynamic Range.
2.7V to 5.25V Supply Voltage Range.
Scaling Stable Over Supply and Temperature Variations.
Controller Mode with Error Output.
Shutdown Mode with Typically 1µA of Supply Current.
Available in 8-Pin µMAX® and TDFN Packages.
See Power-Supply Connections section. µMAX is a registered tra.
