MAX194 - 14-Bit / 85ksps ADC with 10A Shutdown

Product Overview

Maxim

Datasheet Details

Part number	MAX194
Manufacturer	Maxim
File Size	223.69 KB
Description	14-Bit / 85ksps ADC with 10A Shutdown
Datasheet	MAX194 Datasheet

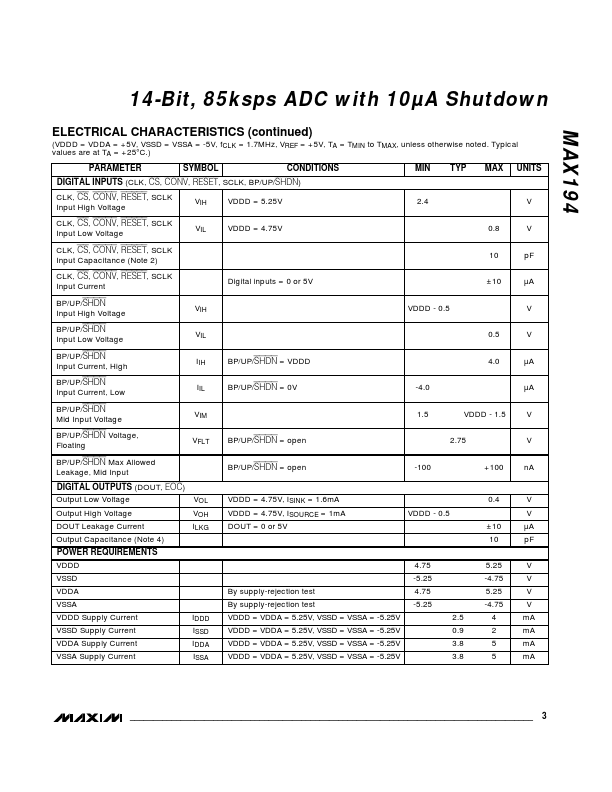

Additional preview pages of the MAX194 datasheet.

Product details

Description

The MAX194 is a 14-bit successive-approximation analog-to-digital converter (ADC) that combines high speed, high accuracy, low power consumption, and a 10µA shutdown mode.

Features

o True 14-Bit Accuracy: 1⁄2LSB INL 82dB SINAD o 9.4µs Conversion Time o 10µA Shutdown Mode o Built-In Track/Hold o AC and DC Specified o Unipolar (0V to VREF) and Bipolar (-VREF to VREF) Input Range o Three-State Serial-Data Output o Small 16-Pin DIP, SO, and Ceramic SB Packages o Pin-Compatible 16-Bit Upgrade (MAX195) MAX194 ______________Ordering Information PART MAX194ACPE MAX194BCPE MAX194ACWE MAX194BCWE MAX194AEPE MAX194BEPE MAX194AEWE MAX194BEWE MAX194AMDE MAX194BMDE TEMP. RANGE 0°C to +.
