MAX1259 - Battery Manager

Description

The MAX1259 battery manager provides backup-battery switching for CMOS RAM, microprocessors, or other lowpower logic ICs.

It automatically switches to the backup battery when the primary power supply is interrupted.

Features

  • Switches to Backup Battery if Power Fails.
  • Consumes Less than 100nA of Battery Current.
  • Power-Fail Output Signals Primary Power-Supply Loss.
  • Battery Monitor Indicates Low Battery.
  • Battery Can Be Disconnected to Prevent Discharge During Shipping.
  • Battery Automatically Reconnected when VCC is Applied.
  • Pin-Compatible with the DS1259.
  • Supply Current Three Times Lower than DS1259.
  • Available in Extended-Industri.

📥 Download Datasheet

📁 Similar Datasheet

  • MAX12527 - Dual 65Msps 12-Bit IF/Baseband ADC (Maxim Integrated Products)
  • MAX12528 - Dual 80Msps 12-Bit IF/Baseband ADC (Maxim Integrated Products)
  • MAX12553 - 14-Bit 65Msps 3.3V ADC (Maxim Integrated Products)
  • MAX12555 - 14-Bit 95Msps 3.3V ADC (Maxim Integrated Products)
  • MAX12557 - Dual 65Msps 14-Bit IF/Baseband ADC (Maxim Integrated Products)
  • MAX12559 - Dual 96Msps 14-Bit IF/Baseband ADC (Maxim Integrated Products)
  • MAX1257 - Multichannel ADCs/DACs (Maxim Integrated Products)
  • MAX1258 - Multichannel ADCs/DACs (Maxim Integrated Products)
  • MAX12000 - 1575MHz GPS Front-End Amplifier (Maxim Integrated Products)
  • MAX12005 - Satellite IF Switch (Maxim Integrated Products)
Other Datasheets by Maxim
  • MAX125 - 2x4-Channel / Simultaneous-Sampling 14-Bit DAS
  • MAX1253 - 12-Bit System Monitors
  • MAX1254 - 12-Bit System Monitors
  • MAX120 - 500ksps / 12-Bit ADCs
  • MAX1200 - 16-Bit Self-Calibrating ADC
  • MAX1201 - 14-Bit Self-Calibrating ADC
  • MAX1203 - 12-Bit ADCs
  • MAX1204 - 5V / 8-CHANNEL / SERIAL / 10-BIT ADC

Full PDF Text Transcription

Click to expand full text

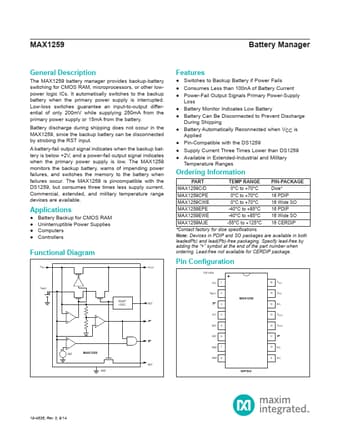

MAX1259 Battery Manager General Description The MAX1259 battery manager provides backup-battery switching for CMOS RAM, microprocessors, or other lowpower logic ICs. It automatically switches to the backup battery when the primary power supply is interrupted. Low-loss switches guarantee an input-to-output differential of only 200mV while supplying 250mA from the primary power supply or 15mA from the battery. Battery discharge during shipping does not occur in the MAX1259, since the backup battery can be disconnected by strobing the RST input. A battery-fail output signal indicates when the backup battery is below +2V, and a power-fail output signal indicates when the primary power supply is low.
