MAX1237 - 12-Bit ADCs

Name: MAX1237
SKU: MAX1237-447049

Maxim

The MAX1237 by Maxim is a 12-Bit ADCs. Below is the official datasheet preview.

📥 Download Datasheet

MAX1237 12-Bit ADCs by Maxim - Datasheet Preview — Official preview page of the **MAX1237** 12-Bit ADCs datasheet (Maxim).

Datasheet Details

Part number	MAX1237
Manufacturer	Maxim
File Size	264.49 KB
Description	12-Bit ADCs
Datasheet	MAX1237_MaximIntegratedProducts.pdf

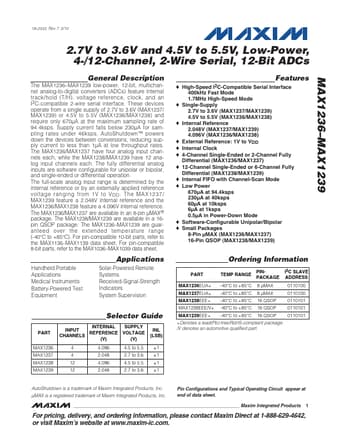

Additional preview pages of the MAX1237 datasheet.

MAX1237 Product details

Description

The MAX1236 MAX1239 low-power, 12-bit, multichannel analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference, clock, and an I2C-compatible 2-wire serial interface.

Features

High-Speed I2C-Compatible Serial Interface 400kHz Fast Mode 1.7MHz High-Speed Mode.
Single-Supply 2.7V to 3.6V (MAX1237/MAX1239) 4.5V to 5.5V (MAX1236/MAX1238).
Internal Reference 2.048V (MAX1237/MAX1239) 4.096V (MAX1236/MAX1238).
External Reference: 1V to VDD.
Internal Clock.
4-Channel Single-Ended or 2-Channel Fully Differential (MAX1236/MAX1237).
12-Channel Single-Ended or 6-Channel Fully Differential (MAX1238/MAX1239).
