MAX8864S - 120mA Linear Regulators

Download the MAX8864S datasheet PDF. This datasheet also covers the MAX8863T variant, as both devices belong to the same 120ma linear regulators family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX8863T/S/R and MAX8864T/S/R low-dropout linear regulators operate from a +2.5V to +6.5V input range and deliver up to 120mA.

Features

  • include low-power shutdown, short-circuit protection, thermal shutdown protection, and reverse battery protection. The MAX8864 also includes an auto-discharge function, which actively discharges the output voltage to ground when the device is placed in shutdown mode. Both devices come in a miniature 5-pin SOT23 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX8863T_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX886 Wireless and Satellite Handset Power-Management ICs Maxim
MAX8860 Low-Dropout / 300mA Linear Regulator Maxim
MAX8862 Low-Cost / Low-Dropout / Dual Linear Regulator Maxim
MAX8863 120 mA Linear Regulator ON Semiconductor
MAX8863T 120mA Linear Regulators Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX8864R 120mA Linear Regulators
MAX8864T 120mA Linear Regulators
MAX8863R 120mA Linear Regulators
MAX8863S 120mA Linear Regulators
MAX8865R 100mA Linear Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

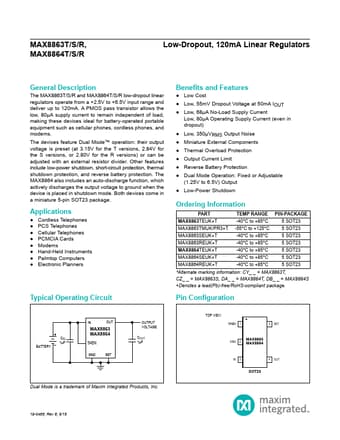

MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 120mA Linear Regulators General Description The MAX8863T/S/R and MAX8864T/S/R low-dropout linear regulators operate from a +2.5V to +6.5V input range and deliver up to 120mA. A PMOS pass transistor allows the low, 80μA supply current to remain independent of load, making these devices ideal for battery-operated portable equipment such as cellular phones, cordless phones, and modems. The devices feature Dual Mode™ operation: their output voltage is preset (at 3.15V for the T versions, 2.84V for the S versions, or 2.80V for the R versions) or can be adjusted with an external resistor divider. Other features include low-power shutdown, short-circuit protection, thermal shutdown protection, and reverse battery protection.
