MAX77231 - Ultra-Low Noise Boost Regulator

Description

The MAX77231 is optimized for boost applications, requiring very low ripple/noise and small PCB space.

Output ripple and noise are suppressed to 35µVRMS (in 1MHz BW) by a PMOS linear post-regulator set 0.5V below the boost regulator output to reject noise while optimizing efficiency.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX772 5V/12V/15V or Adjustable / High-Efficiency / Low IQ / Step-Up DC-DC Controllers Maxim
MAX770 5V/12V/15V or Adjustable / High-Efficiency / Low IQ / Step-Up DC-DC Controllers Maxim
MAX7705 P Power-Supply Monitor with Reset Maxim
MAX771 5V/12V/15V or Adjustable / High-Efficiency / Low IQ / Step-Up DC-DC Controllers Maxim
MAX773 5V/12V/15V or Adjustable / High-Efficiency / Low IQ / Step-Up DC-DC Controllers Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX77271 Multimode PA Step-Down Converter
MAX77178 High-Bandwidth LTE/WCDMA PA Power Management
MAX77179 High-Bandwidth LTE/WCDMA PA Power Management
MAX77301 Li+ Charger
MAX77324 Ultra-Small Buck Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

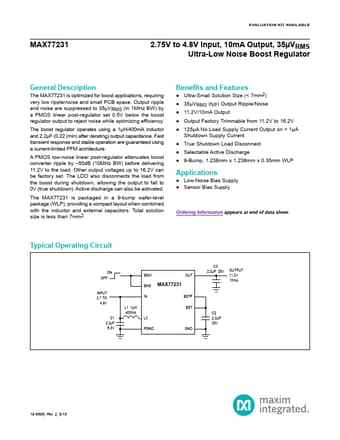

MAX77231 EVALUATION KIT AVAILABLE 2.75V to 4.8V Input, 10mA Output, 35µVRMS Ultra-Low Noise Boost Regulator General Description The MAX77231 is optimized for boost applications, requiring very low ripple/noise and small PCB space. Output ripple and noise are suppressed to 35µVRMS (in 1MHz BW) by a PMOS linear post-regulator set 0.5V below the boost regulator output to reject noise while optimizing efficiency. The boost regulator operates using a 1µH/400mA inductor and 2.2µF (0.22 (min) after derating) output capacitance. Fast transient response and stable operation are guaranteed using a current-limited PFM architecture. A PMOS low-noise linear post-regulator attenuates boost converter ripple by ~50dB (10MHz BW) before delivering 11.2V to the load. Other output voltages up to 16.
